PLUTO 2.1- HDTV phase only SLMs

PLUTO 2.1- HDTV phase only SLMs
PLUTO 2.1- HDTV phase only SLMs
Contact Us
PLUTO 2.1- HDTV phase only SLMs
PLUTO 2.1- HDTV phase only SLMs
PLUTO 2.1- HDTV phase only SLMs
  • Stock: Contact us for details
  • Click here to: Contact us
  • Model: HOLOEYE PLUTO
£0.00

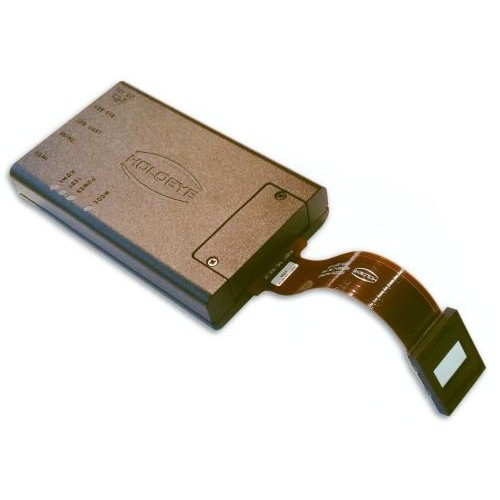

PLUTO HDTV phase only SLMs

PLUTO Series

  • Reflective LCOS (Phase Only) display
  • Dielectric mirror coated versions available
  • 1920 x 1080 HDTV resolution, 8 µm pixel pitch
  • Frame rate: 60/180 Hz
  • Up to 93% fill factor
  • 2π up to 1550 nm
  • 15.36 x 8.64 mm (0.7" diagonal) active area
  • 8-bit (256 grey levels) addressing
  • HDMI & USB interface (PLUTO-2)

The PLUTO phase only Spatial Light Modulators (SLMs) are based on reflective LCOS microdisplays delivering 1920 x 1080 pixel resolution with an 8 µm pixel pitch. The SLM panel's high fill factor ensures a high light efficiency, the active area being 0.7” diagonal with an aspect ratio of 16:9.

PLUTO is plug & play, offers fast full digital addressing, and can be programmed with phase functions via a standard graphics card as an extended monitor device using the supplied software.

HOLOEYE offers different panel versions optimised for use with different wavelength ranges, and their new dielectric mirror versions enable use with higher incident power lasers due to the coating's reduction of absorption.

Applications

  • Holography
  • Lithography
  • Optical metrology
  • Interferometry
  • Optical tweezers
  • Wave front correction
  • Phase shifting

PLUTO-2 driver

The new enhanced PLUTO-2 driver features an HDMI interface for addressing phase functions, a USB connection for advanced calibrations, and a trigger sync output for synchronising with external devices - such as colour-switchable lasers. The PLUTO-2 driver's faster addressing speed allows for a colour-field-sequential (CFS) mode at 180 Hz input frame rate and, as a bonus, also offers a more stable phase response.

The PLUTO-2 driver is equipped with a dual-core processor and on-chip memory, enabling user-programmed (Ubuntu™) additional functionality. For example, a slideshow of images can played back from a USB stick or internal memory.

High retardance

Panels are available with considerably higher phase retardation in comparison to the standard models, enabling up to 4π or even up to 6π phase functions to be addressed. This can be beneficial for wavefront functions, as it enables higher slopes and reduced transition points compared to the usual 2π encoding.

For some applications a stable phase response is required, and this can be accomplished by driving the High Retardance panel with 2π phase retardation settings. The driving forces to the LC molecules in such a configuration are reduced, so response time is slower, but the phase signal typically shows a standard deviation of 0.2-0.7% (wavelength dependent).

Model overview

PLUTO Range Chart Spectrum

Version Wavelength
(nm)
Refl. Phase Shift
(Max.)
Notes Application
 PLUTO-2-VIS-014 420–650 65 % 3.9π @ 530 nm
2.9π @ 650 nm
  Fast Response Time
 PLUTO-2-VIS-016 420–650 67 % 6.7π @ 530 nm
5.4π @ 633 nm
High Retardation Low Phase Flicker
 PLUTO-2-VIS-096 450–650 95-98 % 3.1π @ 530 nm
2.5π @ 633 nm
Dielectric Mirror Higher Power Use
 PLUTO-2-NIR-011 420–1100 65-75 % 4.5π @ 530 nm
2.6π @ 850 nm
2π @ 1064 nm
  Broadband Use
Fast Response Time
 PLUTO-2-NIR-015 650–1100 65-73 % 4.4π @ 850 nm
3.7π @ 1064 nm
High Retardation Low Phase Flicker
 PLUTO-2-NIR-080 730–950 95 % 4.8π @ 800 nm Dielectric Mirror Higher Power Use
 PLUTO-2-NIR-049 1000–1100 93 % 2π @ 1064 nm Dielectric Mirror Higher Power Use
 PLUTO-2-NIRO-023 1000–1400 74 % 4.1π @ 1400 nm
 PLUTO-2-TELCO-013 1400–1700 80 % 3.5π @ 1550 nm

Software

Each PLUTO spatial light modulator is supplied with a high-end HDTV graphics card, display mount and extended driver software that offers:

  • Real-time holograms (for optical tweezers or holographic projection applications)
  • Diffraction gratings
  • Lenses
  • Axicons
  • Apertures
  • Beamsplitters


Extra features and functions not found in the standard software are included along with a LabVIEW™ SubVi for the enhanced addressing of optical functions for home-brew applications.

Please contact us for the latest price.


HOLOEYE Photonics website

File Name Size Link
Holoeye OLE Article 1.07MiB Download
SLM Thermal Management Systems 277.94KiB Download
Spatial Light Modulators 1.08MiB Download
Terms and Conditions V6 206.45KiB Download
Showing 1 to 4 of 4 (1 Pages)

A number of papers have been published by scientists around the globe who have used a HOLOEYE PLUTO SLM in their research. Here are some examples:

A database of published papers, searchable by device or application, can be also found on the HOLOEYE website here.


PLUTO-2 SLM Product Introduction


Configuring the PLUTO-2 SLM

Elementary Optical Functions

The HOLOEYE Spatial Light Modulator Pattern Generator software was developed for use with all HOLOEYE SLM models. The software allows the simple generation of diverse dynamic optical functions like gratings, lenses, axicons and apertures as well as the calculation of diffractive optical elements (DOE) from user defined images.


Besides the generation of DOEs a wide range of basic optical functions can be created directly via the menu bar. After input of the required parameters the output image appears in a new window. There are several binary and multilevel optical functions possible:

  • Blank Grey Level Screen
    With this function you can create a homogeneous gray level screen.

  • Horizontally Divided Screen
    With this function you will create a horizontally divided screen, consisting of two homogeneous graylevel partial screens.

  • Random Bitmap
    With this function you will create a random pixel distribution using 256 grayscale values. This function can be used to realize the optical function of a random phase plate.

  • Aperture Functions
    - Rectangular Aperture
    - Circular Aperture
    -Single Slit and Double Slit

  • Fresnel Zone Lenses
    -Binary Fresnel Zone Lens
    -Multilevel Fresnel Zone Lens
    -Cylindrical Fresnel Zone Lens

  • Binary Axicon
    With this function you will create a Binary Axicon graylevel image representation.

  • Axicon
    With this function you will create a 256-level Axicon graylevel image representation.

  • Vortex Phase
    Use this function to create a 256-graylevel image representation of a vortex phase.

  • Concentric ring segments
    Use this function to create binary images consisting of concentric ring segments.

  • Binary beam-splitter gratings
    -Linear Gratings and Crossed Linear gratings
    -Exemplary binary beam-splitter designs

  • Sinusoidal Grating
    With this function you will create a sinusoidal grating.

  • Blazed Grating
    With this function you will create a blazed grating.

  • Calculating a beam-shaping phase function for Gaussian Input beams
    -Transformation of a Gaussian beam to a circular ‘flat-top’ beam
    -Transformation of a Gaussian beam to a rectangular ‘flat-top’ beam

  • Superposition with an additional phase map
    - e.g. for compensation of aberrations of the optical system or of the SLM
