MDE263A - V - 5 mm Travel XYZ Micropositioner - Vacuum Compatible

MDE263A - V - 5 mm Travel XYZ Micropositioner - Vacuum Compatible
Contact Us
MDE263A - V - 5 mm Travel XYZ Micropositioner - Vacuum Compatible
  • Stock: Contact us for lead times
  • Click here to: Contact us
  • Model: Martock MDE263A - V
£568.00

5 mm travel XYZ micropositioner - vacuum compatible

MDE263A - V

  • Wide range of configurations
  • Very smooth backlash-free motion
  • adjuster 0.25 picth
  • Very small lapped dovetail slides
  • Prepared for operation in vacuum

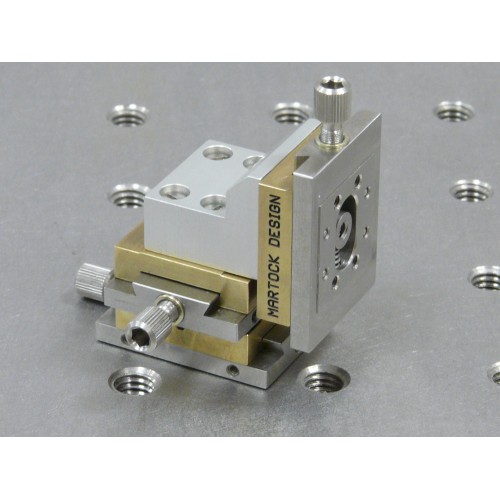

A very small, three-axis XYZ micropositioner with simple adjustment for XYZ linear translation stage applications under vacuum in physics experiments or optical systems.

Specifications

MDE262M XY Micrometer Micropositioner Axis Diagram

MDE261 Series Drawing
Click


<<click documents tab for other formats>>

Travel

Sensitivity

5mm

< 0.5 µm

Adjusters 0.25 pitch
(2.5 mm hk socket/knurled knob)
Top plate 26 x 20 mm
Mounting holes  Four M2 x 2 mm deep

Variants
 Lockable travel
 Low Magnetic
 Standard version

Lock mechanism
Locking mechanism



Note: Surface mating with these micropositioners must be truly flat. Unflat surfaces or overtightened screws will cause the slide motion to be jerky and stiff due to distortion. Dovetail slides, unlike miniature ball slides, are unlikely to be permanently damaged by temporary distortion, as the load is supported on a comparatively large area.

File Name Size Link
MDE263_163.PDF 111.45KiB Download
MDE263_163.SLDPRT 1.4MiB Download
MDE263_163.STEP 5.7MiB Download
MDE263_3D_163.PDF 333.68KiB Download
Terms and Conditions V6 206.45KiB Download
Showing 1 to 5 of 5 (1 Pages)
