MDE521 - Elliot Gold™ Series Polarisation Maintaining Fibre Launch System with Basic Adjusters

MDE521 - Elliot Gold™ Series Polarisation Maintaining Fibre Launch System with Basic Adjusters

Elliot Gold™ series Polarisation Maintaining Fibre Launch System with Basic Adjusters


  • Approximately 0.1 degrees rotational resolution
  • Suitable for PM fibre (125 µm)
  • Orthogonal alignment grooves
  • 200 nm resolution
  • 2 mm travel per axis
  • 4.5 kg load capacity
  • Ultra-stable patented design XYZ flexure stage

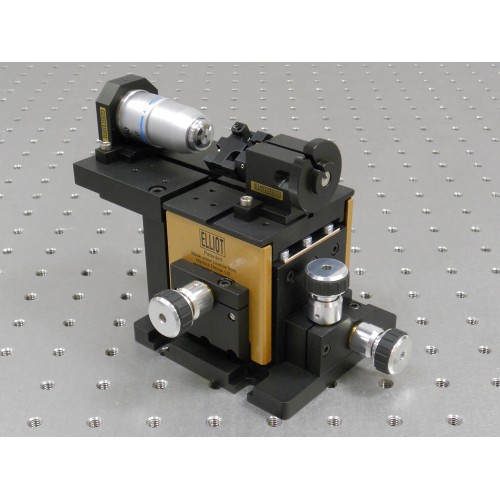

Elliot Gold™ Series polarisation maintaining (PM) fibre launch system comprising: 3-axis simple manual flexure stage with standard fibre (US: fiber) rotator, objective lens mount with RMS thread, and small fixed bracket.
Suitable for launching free space light beams into PM fibre as this requires the roll axis to be adjusted to ensure correct alignment of the laser and fibre polarisation axes.

All accessories are compatible with the Elliot Gold™ series flexure stages. The optical axis height is 18 mm above the platform surface and on the centre line of the location slot. Where necessary a locating tongue forms part of the accessory. A standard clamp system is used and is supplied with the flexure stages and accessory platforms. The choice of objective lens is subject to user preference, and must be ordered separately. Extra clamp sets (MDE154) are available if required.

Elliot MDE521 Gold Series Axis DiagramSystem Constituents
MDE718 Fibre rotator
MDE330 Elliot Gold™ series XYZ High Precision Flexure Stage
MDE217 Manual adjusters 0.25 pitch (x3)
MDE154 Clamp Set
MDE150 Objective mount with RMS thread (Lens not included)
MDE148 Small fixed bracket


Configuration Right handed version
Fibre holder V-groove & single clamp arm for 125 µm fibre. Spring-loaded clamp arm force adjusts from 25 to 125 g
Fibre rotation Full 360° rotation. Resolution approx 0.1 degrees
Adjuster Type Three simple manual adjuster, 0.25 pitch (Model MDE217)
Stage travel 2 mm in X, Y and Z axes
Resolution 200 nm
Load capacity 4.5 kg
Arcuate Displacement    X axis 20 µm (at maximum range of travel)
Y and Z axes 14 µm (at maximum range of travel)
Optical axis The optical height of all Flexure Stage accessories is 18 mm above the top plate. Therefore, the optical axis height of a mounted accessory is 94 mm above the bottom of the stage
Objective mount  Removable stainless steel sleeve with RMS thread (0.800"-36). Allows on-axis adjustment and exchange of objectives or suitably mounted aspheric or ball lenses

Variants, Options, and Accessories


Further Options
Left-handed version (to special order)
Custom sized V-grooves

† Patent Nos. GB 2129955B & USA 4635887
