MX50.5 Compact 4-axis Manipulators - 12 mm Travel

MX50.5 Compact 4-axis  Manipulators - 12 mm Travel

A range of crossed roller stage 4-axis manipulators for life scientists

MX50.5 Series

The MX50.5 series of manual manipulators are built from low pro­file 50.5cr crossed roller stages. They provide four-axis control in a very small package.

They are ideal for positioning stimulating electrodes, Siskiyou MX610 hydraulic micromanipulators, puffer pipettes, suction pipettes or other devices in a microscope’s field of view.

The manipulators have 100 TPI adjustment screws as standard, and large colour-coded controls for im­proved feel and resolution.

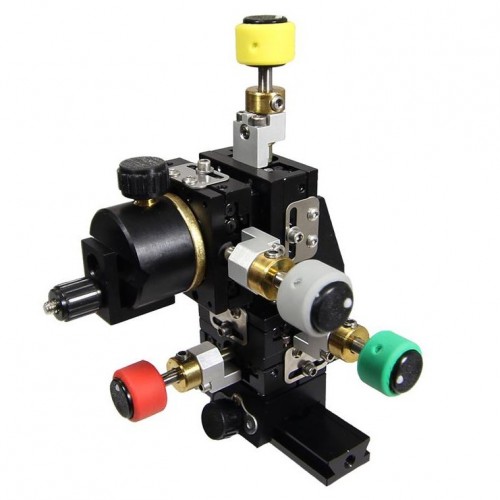

MX50.5 Crossed Roller Manipulator

Product features

  • Compact repeating probe holder
  • Stable crossed roller stages in all axes
  • Choice of left or right-handed models
  • Large colour-coded controls for easy identification
  • Holds mounting rods from 3 to 10 mm diameter
Product specifications
Travel, all axes 12 mm
Load (max) 0.45 kg
Controllable motion (min)   Sub-micron

A number of papers have been published by scientists around the globe who have used Siskiyou Manipulators within their research. Here are some examples:

Siskiyou Corporation has been producing popular laboratory mechanicals for over 40 years; designing from the outset with quality and flexibility in mind.

Siskiyou do not aim at single disciplines, such as Photonics or Life Sciences, but craft their products to provide end users with the modular tools for constructing systems that are only limited by their imagination.

These concepts have ensured Siskiyou components outperform and outlast competitive products.


For more information, you can download the full Siskiyou catalogue here



Go to... Siskiyou Corporation website

Product Code: Siskiyou MX505

Availability: Contact us for details
