MDE231 - Stepper Motor Actuator: 8 mm Travel Adjustment

MDE231 - Stepper Motor Actuator: 8 mm Travel Adjustment
Limited Stock Built to order
MDE231 - Stepper Motor Actuator: 8 mm Travel Adjustment
  • Stock: In Stock
  • Click here to: Contact us
  • Model: Martock MDE231
£1,303.00

Stepper motor actuator: 8 mm travel

MDE231

  • Non-rotating spindle
  • Resolution 0.254 µm single step
  • Integral stepper motor drive and gearbox
  • Integrates with Elliot Gold™ series flexure stages and rotation units

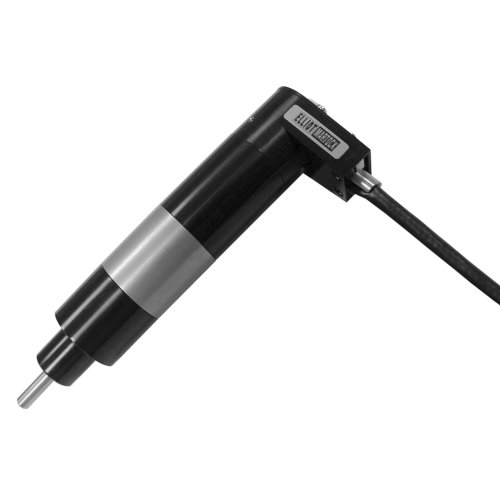

The MDE231 is a stepper motor-driven 8 mm travel actuator. The non-rotating spindle offers low noise translation or rotation when integrated with the Elliot Gold™ series flexure stages, pitch & yaw stages and rotation units. Developed for the demanding rotation and alignment of fibre optic components, it can be used anywhere that stable, accurate motion is needed.

Specifications
Travel8 mm
Thread0.254 µm pitch
Max. speed 0.5 mm/s
Non-rotating spindle
Manual adjustment via hex key


Options and Accessories
Stepper drive controllers available

File NameSizeLink
MDE231_198.PDF80.49 kbDownload
MDE231_198.SLDPRT479 kbDownload
MDE231_198.STEP817.07 kbDownload
MDE231_3D_198.PDF657.29 kbDownload
