QPD Equipped Optical Tweezers System for Force Measurement

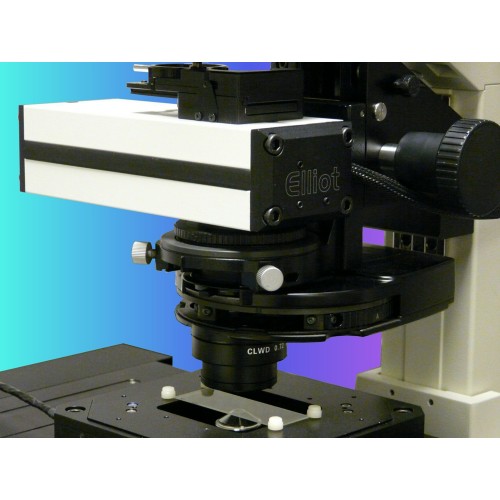

E4100 Quadrant Photodetector Force Measurement Option

Many researchers wish to measure trapping force: so by imaging an interference pattern onto a quadrant photodetector (QPD) and utilising dedicated software, an operator can monitor the position of a trapped particle with nanometer resolution.

The E4100 measurement software also allows the user to calibrate the motion of a single trapped object and thus makes it possible to calculate the forces exerted - this makes optical tweezing particularly attractive for a growing number of scientists probing bio-mechanical systems.

Several different configurations to match possible user requirements are available within the E4100 range. Elliot Scientific can supply a complete Force Measurement Optical Tweezers plug'n'play system, or this capability can be added to an existing Tweezers installation.

Retrofitting to a good quality microscope is also a viable alternative if there are budget limitations.

Multiple QPDs and/or an auxiliary probe beam are among a number of options also on offer.
