High Power Nd:YAG Laser Mirror: 355 nm

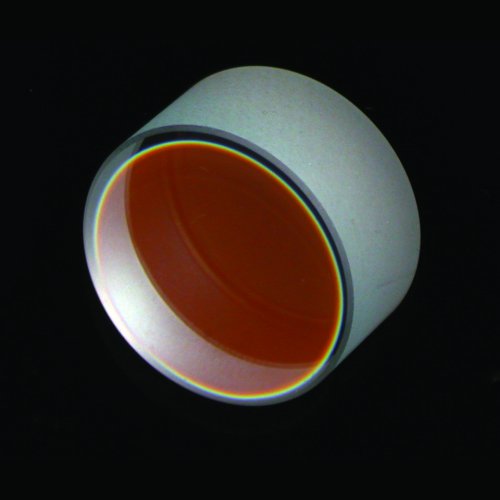

355 nm High Power Nd:YAG Laser Mirror
|Optimal Wavelength||355 nm|
|Working Angle||Normal (0~5°)|
|Damage Threshold||1.5 J/cm2 for 20 nS pulses
1 MW/cm2 CW
|Diameter||25.4 mm +0.00/-0.25 (1")|
|Aperture||> 85% of Ø|
|Thickness||9.4 mm ± 0.25 (0.37")|
|Chamfer||0.35 mm at 45°|
|Scratch/Dig||10/5 as per MIL-PRF-13830B|
This wavelength-specific coated substrate is intended for high power laser applications such as beam steering mirrors or intra-cavity applications.
It is fabricated using electron beam deposited dielectric materials to give a hard coating that has excellent resistance to abrasion, laser induced damage, moisture and typical lab solvents.
Other wavelengths can be supplied upon request. Please contact us with your requirements.
