The ideal engine for frequency comb development

Vescent Mode Locked Lasers

  • Laser Oscillator Characteristics
    • Oscillator volume <150 cm3 (roughly a deck of cards)
    • Electrical power consumption <2.5 W
    • Repetition rate designs for 100 and 200 MHz
      - others on request
    • Fast and slow actuators
      • Fast PZT actuator for cavity length control
        • 200 kHz bandwidth
        • 100 Hz stroke with 100 V tuning on 100 MHz repetition rate
      • Slow TEC actuator for cavity length control
        • >1 Hz bandwidth
        • >10 kHz stroke with 10 °C tuning on 100 MHz repetition rate
    • Current feedback for power stabilisation
      • >30 kHz bandwidth
    • Matched repetition rates
      (requires less than 5 °C temperature tuning of oscillators)
    • Customised pulse width and chirp
  • Integrated amplifiers
  • Rack-mount & table-top units with integrated electronics available
  • Applications include satellite-deployed GPS clocks, free space time transfer, satellite formation flying

Vescent has been developing low-SWaP fibre lasers for deployed applications, offering a variety of custom packaging options and control electronics to meet the most demanding requirements.

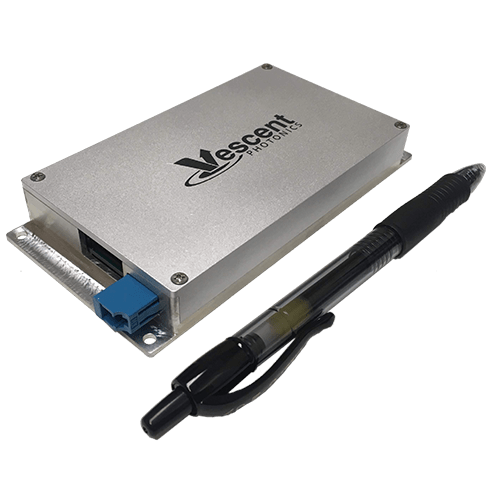

FO-100 Fibre Oscillator
 - Designed for performance

The FO-100 oscillator is the core piece of equipment for femtosecond oscillator and frequency comb experiments. Built around an Erbium-doped fibre, it can deliver sub-100 fs pulses with a bandwidth of over 40 nm, given an appropriate pump input and thermal control loops (not included).

It also features Vescent's unique PZT-based cavity length adjustment tool, that can deliver >100 Hz of fine control over the repetition rate with an appropriate user-supplied signal. Combined with coarse temperature tuning and factory centreing, the repetition rate can be precisely determined. for example, matching the repetition rates of two oscillators for dual-comb spectroscopy is possible.

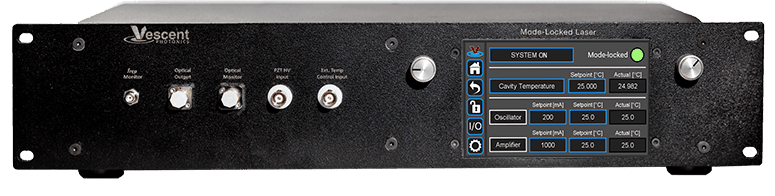

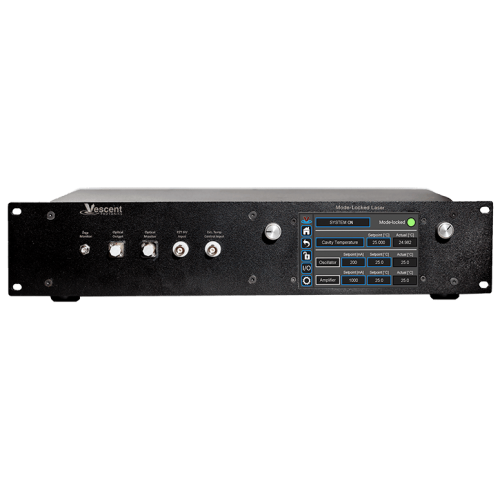

MLO-100 Mode Locked Oscillator
 - Designed for ease of use



Vescent’s MLO-100 Mode Locked Oscillator is a stand-alone femtosecond laser designed for high performance and ease of use. Built around the FO-100, it incorporates an EDFA, mode-locker, pump diodes, current sources, temperature controller, and the requisite drive electronics and user interface.

The MLO-100’s combination of touch screen interface and rotary controller makes for simple set up and operation. Modulation and control of the pump power, as well as fast (via PZT) and slow (via temperature) tuning of the repetition rate, mark the MLO-100 out as the ideal engine for your frequency comb development. The slow integrator controlling the precise temperature set point allows long-term repetition rate locking when combined with the fast PZT loop.



Need eye protection?


Vescent Technologies website

File NameSizeLink
Vescent Fiber Oscillator Datasheet283.98 kbDownload
Vescent MLO Mode Locked Laser Datasheet582.21 kbDownload
