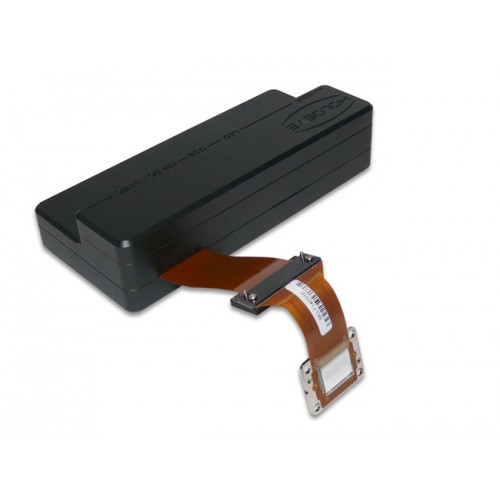

LETO - LETO HDTV phase only SLM for 400 to 1100 nm

LETO - LETO HDTV phase only SLM for 400 to 1100 nm

Phase Only Spatial Light Modulator (Reflective)


  • Pixel pitch: 6.4 µm
  • Fill factor: 93%
  • Signal type: HDMI
  • 60/180 Hz image frame rate
  • Phase only modulation
  • HDTV resolution (1920 x 1080)
  • Reflective LCOS microdisplay
  • 2π phase modulation up to 850 nm

The LETO phase modulator is based on a reflective LCOS microdisplay with full HD (1920 x 1080 pixel ) resolution. With a pixel pitch of only 6.4 µm and a small interpixel gap of 0.2 µm the LETO SLM provides a high fill factor of 93% and thereby a high light efficiency.
The LETO Spatial Light Modulator is usable for the 400-1100 nm range and the modulator provides a phase shift of 2π up to 850 nm. The device is delivered with a linear 256-level phase response for the specified user wavelength. The adaptation of the device settings for different operating wavelengths to a linear 2π phase response can be done by straight forward gamma correction using the supplied calibration software.
The LETO Spatial Light Modulator offers a reflectivity of ~ 75%. Due to the optimised design of the LCOS microdisplay, the LETO SLM shows low cross talk between the pixels resulting in high effective spatial resolution. The device offers diffraction efficiencies of more than 80% (16 level blazed grating) which leads to a total light efficiency of ~ 60%.
The LETO phase only modulator devices can simply be addressed like an external monitor using the standard HDMI interface of the graphics card. No additional software or special hardware is needed to operate the SLM. The driver also allows for a colour-field-sequential (CFS) mode at 180 Hz input frame rate; for operation with colour-switchable RGB lasers for example.
For advanced callibration, the LETO device uses a convenient standard USB interface and a Java based GUI callibration software. The software can be used to change geometric settings, brightness, contrast, and the electro-optical response by applying new gamma curves.

Please contact us for the latest price.


A number of papers have been published by scientists around the globe who have used a HOLOEYE LETO series SLM in their research. Here are some examples:

A database of published papers, searchable by device or application, can be also found on the HOLOEYE website here.


Go to... HOLOEYE Photonics website

Product Code: HOLOEYE LETO

Availability: Contact us for details
