Fiber-coupled LED light sources

Prizmatix Fiber-coupled LED light sources

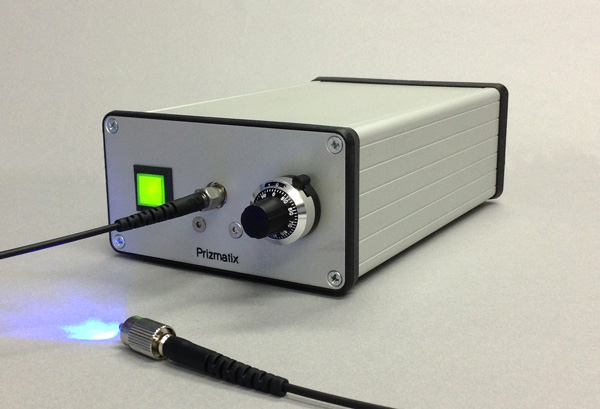

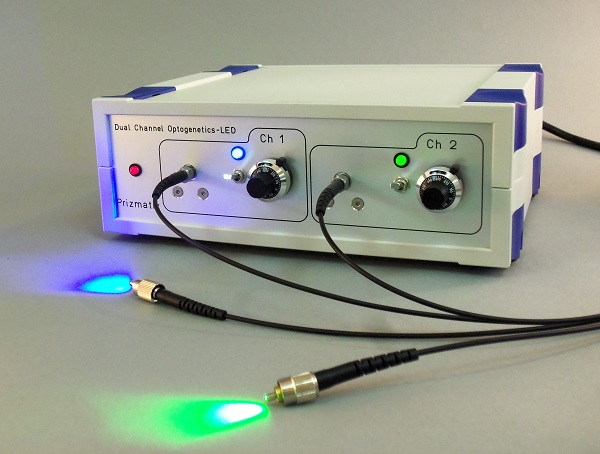

The fiber-coupled LED light sources from Prizmatix are an excellent replacement for lasers in many applications such as spectroscopy, optogenetics or crosslinking.

Optimized for fiber-coupling and highest optical performance, the light sources achieve amazing optical powers of up to 1100 mW after a 1 m long fiber (NA 0.63, 1500 µm core). Thanks to the compact design with the low-noise controller integrated into the housing, these light sources can be used almost anywhere and can be easily integrated as OEM components.

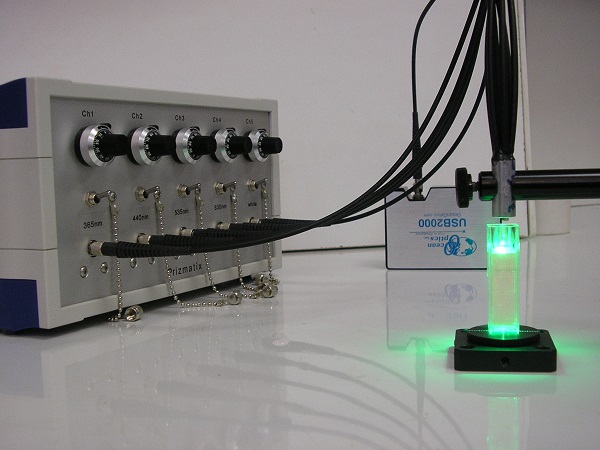

The LED light sources offer a variety of control options for power regulation such as an analog input, a TTL input, control via USB or the classical manual control via a potentiometer. Especially the TTL input makes these light sources an optimal solution for measurements with fiber-coupled spectrometers, for example in external trigger mode.

The main features of the fiber-coupled LED light sources are:

• Optimized for fiber coupling and highest optical power
• Various control options (analog, TTL, USB, potentiometer, depending on model)
• USB control compatible with µManager, Labview, Matlab and many more
• Analog and TTL inputs are optically isolated
• Low-noise controllers (e.g. FC-LED < 0.05% RMS)
• Long lifetime, typically >10,000 hours
• SMA connector
• Each LED comes with a test report

Comparison of fiber-coupled LED light sources

Legend: ◐ lowest value ●●●● highest value of all our LED types

Note:
1: after 1 m POF fiber, 1000 µm core NA 0,63
2: via fiber-coupled remote control
3: via external Pulser/Pulser Plus or USB-TTL
4: status 20.01.2019
