OPTOSIGMA TADC-601S

OPTOSIGMA TADC-601S
Limited Stock
Tags: TADC-601S
OPTOSIGMA TADC-601S
  • Stock: In stock - Contact us for lead times.
  • Click here to: Contact us
  • Model: OPTOSIGMA TADC-601S
OPTOSIGMA OPTOSIGMA
£155.10
Add to Cart
Buy Now

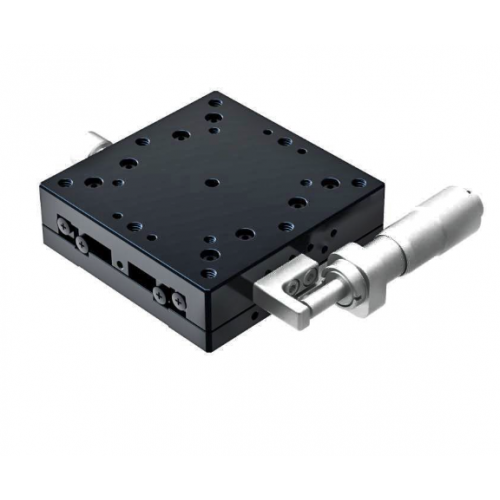

OPTOSIGMA TADC-601S  X-AXIS STAGE

60X60mm Ball Bearing, Aluminum, X-Axis Stage, Side Micrometer, +/-6.5mm, M4 Threads

Stage Size40×40mm
Angle Range±20°
Load Capacity68.7N (7.0kg)
Rotation Center Height15±0.1mm
Angle Range±20°
Travel per Knob Rotation(Upper) β軸：about 2.83° (Lower)α軸：about 1.74°
Vernier Readable Resolution12′
Rotation Center Displacementφ2mm or less



File NameSizeLink
Terms and Conditions V6207.42KiBDownload
