ISS Q2 Microscopes
ISS Q2
Overview of Q2
Benefits include :
-
Modularity
A selection of laser wavelengths, detectors, number of detection channels, & microscopes.
-
Superb Confocal Images
-
Lifetime Measurements
From 100 ps to 100 ms
- Unmixing the Signal from Autofluorescence Using the Phasor Plot
-
Single Molecule Studies
Detection of Full-Scale FCS
- Affordable Solution

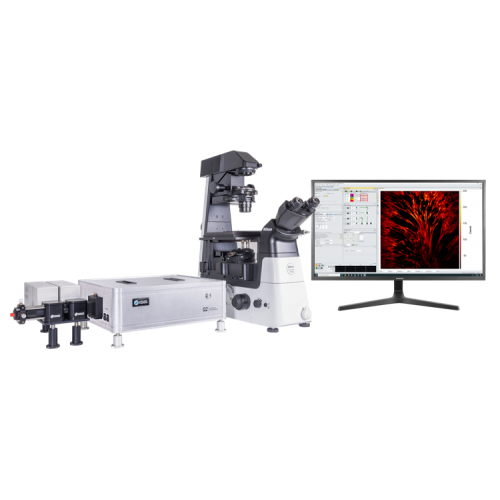

A compact and adaptive microscope system for comprehensive time-resolved confocal imaging and FFS measurements, the Q2 can be equipped with single-photon and multi-photon excitation and up to five detection channels to meet the single molecule sensitivity challenges and the fast data acquisition required for live cell imaging and material science applications.
The detectors are conveniently mounted on sturdy baseplates holders that are coupled to the Q2. Cubes holding dichroic filters are located at the channels junctions to separate the wavelength ranges directed to each detector; filters in front of each detector select the spectral wavelength region. The cube accommodates polarizing beam splitters for polarization acquisition.
Holder units for two, three and four detectors are available. Detectors type may be different on a holder; for instance, a four-detector unit may carry two SPADs and two hybrid PMTs. A fiber port can replace a detector coupling hardware to connect a spectrograph.

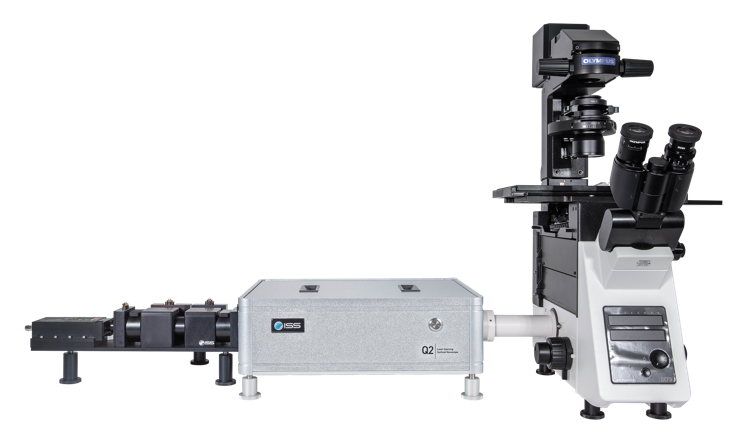

Q2 With Evident (Olympus) Microscope
