ISS Galvo Scanning Mirrors Module With Pinhole

ISS Galvo Scanning Mirrors Module With Pinhole

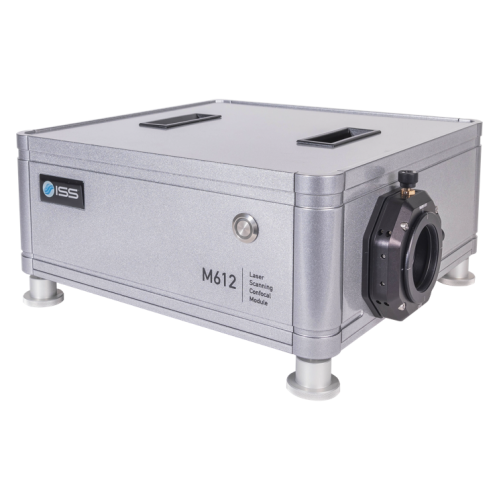

Overview of Galvo Scanning Mirrors Module With Pinhole

This two-axis Galvo Scanning Mirrors unit includes a computer-controlled, variable-aperture pinhole. The unit includes a rotating filter wheel, descanning lens, two computer-controlled shutters and one variable-aperture pinhole. Up to four dichroic filters can be installed to separate the excitation radiation from the fluorescence; filter selection is through the software. The mirrors, 5 x 5 mm, are coated to cover the range 250 - 450 nm (UV-enhanced Al coating) or the range 375 - 800 nm (broadband dielectric coating). The unit, complete with driving electronics and power supply, is controlled through the 3-axis card by the VistaVision software.

Applications

Key component of a custom-built 1-photon Laser Scanning Microscope
