Prizmatix Light Guide Coupled LED Sources

Ultra High Power Light Guide Coupled LED Light Source

The liquid light guide coupled LED light sources from Prizmatix have been specially developed for microscopy and OEM applications that require a particularly high and homogeneous illumination. They are used for example in machine vision systems, confocal microscopes and life science instrumentation.

Due to their compact design with the low-noise controller integrated into the housing, these light sources can be used almost anywhere and can be integrated very well as OEM components.

The various control options via I²C, TTL, analog input or USB make power regulation very easy. Thanks to the optimization of the light guide coupling, the optical power is particularly high and reaches up to 5000 mW after a 1 m long light guide (NA 0.6, 5000 µm core).

The main features of the liquid light guide coupled LED light sources are:

• Optimized for liquid light guide coupling and extremely high optical power
• Various control options (analog, TTL, USB, potentiometer, I²C)
• USB control compatible with µManager, Labview, Matlab and many more
• Analog and TTL inputs are optically isolated
• Low-noise controller
• Long lifetime, typically >10,000 hours
• Liquid light guide (LLG) connector
• Each LED comes with a test report

UHP-F-LED

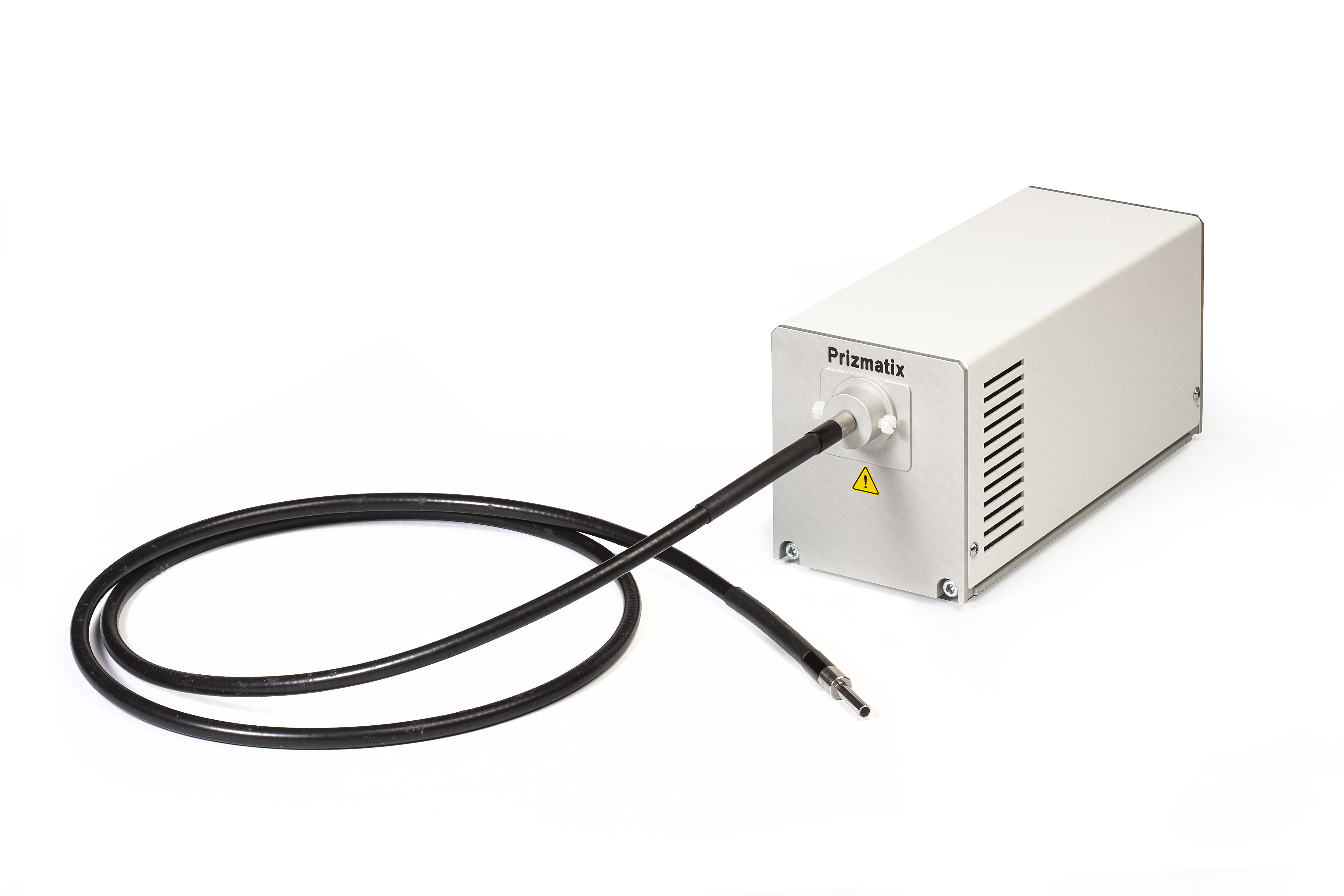

Prizmatix UHP-F-LED series of Ultra High Power LED (up to 70Watt) light guide coupled light sources was designed especially for microscopy and OEM illumination applications in life science instrumentation, machine vision, confocal microscopy and many others. The UHP-F-LED housing is self-contained light source including all necessary driver electronics and thermal management, no special controller box is required to operate the module if used at maximum power.

	UHP-F-LED
Special features	- extremely high optical power - remote control by I²C - ideal as OEM component
Wavelengths	white & monochromatic
Optical power1	••• / ••••2
Price	••• / ••••2
Connection	LLG
Controller	built into the housing
Potentiometer	optional3
TTL input
Analogue input
USB-Control (optional)	4
Available wavelengths 5 [nm]	365, 385, 405, 455, 470, 525, 545, 560, 625, 630, white: 420-675 (with 5700 / 6500 K, different spectra and high CRI available)
Variants	---
Collimated equivalent LED	UHP-T-DI / UHP-T-MP

Legend: • lowest value •••• highest value of all our LED types
1: after 1 m liquid light guide (LLG), 5000 µm core, NA 0,6
2: depending on wavelength
3: via fiber-coupled remote control
4: via external USB-CTRL
5: status 20.01.2019

Key Features

• Single chip Ultra High Brightness LED
• Simple integration for OEM

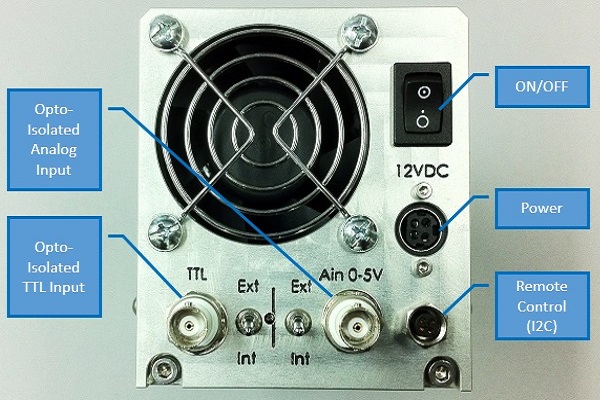

• Isolated TTL and Analog Input
• Fast TTL switching
• Low optical noise
• Remote control by I2C protocol

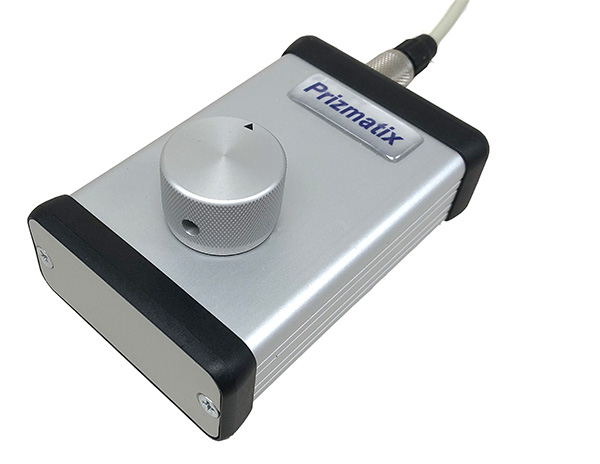

• Optional Remote Controller for Power and ON/OFF control
• Long life (no lamp or laser tube replacement required)

Applications

• Routine microscopy and cell culture microscopy
• Bio-instrumentation
• Curing of UV adhesives
• Machine vision
