Silver Nanoparticle Polarisers

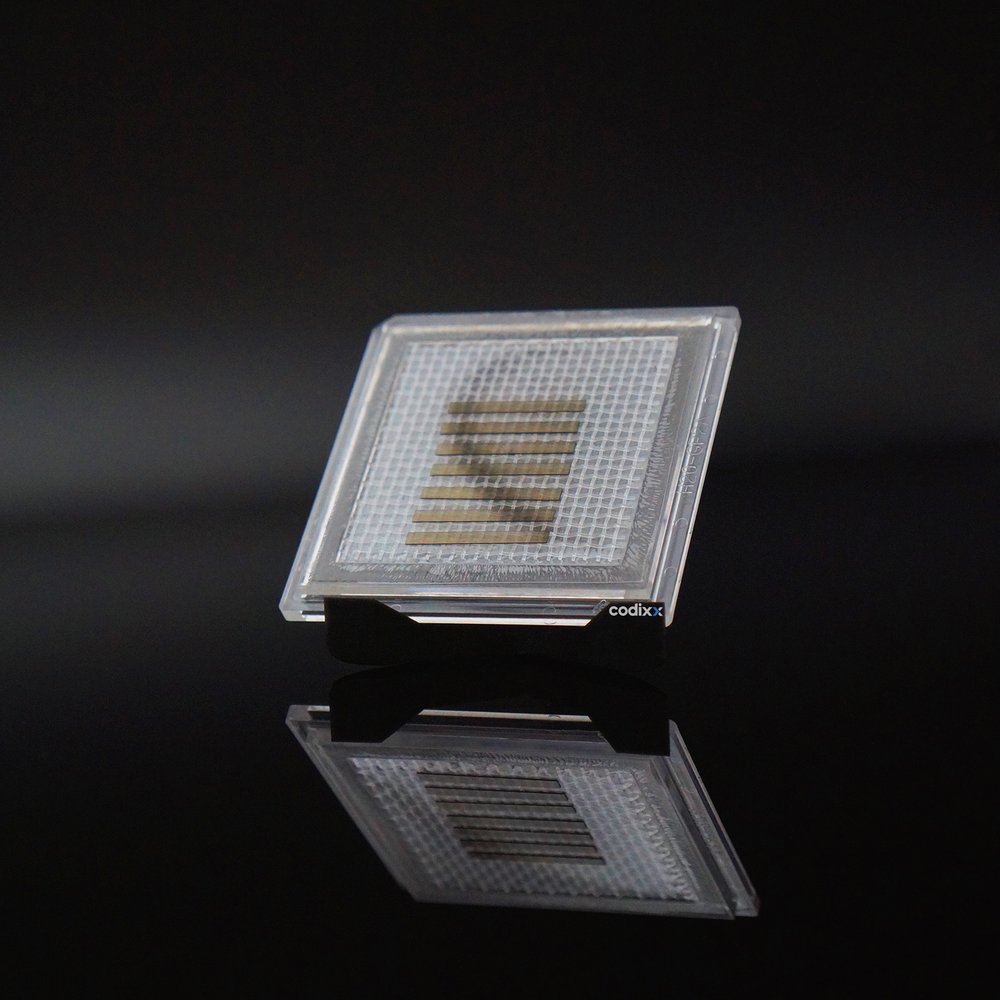

colorPol® VIS polarizer
| Wavelength range | 475 - 780 nm |
| Thickness | 0.22 to 0.28 (±0.05) mm (non-laminated) 2.0 (±0.2) mm (laminated) |
| Temperature range | -50 to +400 °C (non-laminated) -20 to +120 °C (laminated) |
| Option | Antireflection coating to increase transmission and to reduce reflection |
| Dimensions | According to specific customer requirements |
More spectral ranges, transmission characteristics and contrast ratios are available.
codixx provides following standard products for polarizers for the visible range:
| colorPol® Product | Graph | Wavelength range [nm] | Transmittance [%] | Contrast k1:k2 | Thickness unlaminated [µm] | Thickness laminated [mm] | Max. dimensions [mm2] | |
|---|---|---|---|---|---|---|---|---|
| VIS 500 BC3 | 475-625 | >55 - 81 | >1,000:1 | 280±50 | 2.0±0.2 | ≤100 x 60 | unlaminated / laminated | |
| VIS 500 BC3 CW01 (AR coated) | 475-625 | >55 - 90 | >1,000:1 | 280±50 | 2.0±0.2 | ≤100 x 60 | unlaminated / laminated | |
| VIS 500 BC4 | 480-550 | >58 - 76 | >10,000:1 | 280±50 | 2.0±0.2 | ≤100 x 60 | unlaminated / laminated | |
| VIS 500 BC4 CW01 (AR coated) | 480-550 | >62 - 82 | >10,000:1 | 280±50 | 2.0±0.2 | ≤100 x 60 | unlaminated / laminated | |
| VIS 600 BC5 | 530-640 | >62 - 78 | >100,000:1 | 280±50 | 2.0±0.2 | ≤100 x 60 | unlaminated / laminated | |
| VIS 600 BC5 CW01 (AR coated) | 530-640 | >66 - 83 | >100,000:1 | 280±50 | 2.0±0.2 | ≤100 x 60 | unlaminated / laminated | |
| VIS 700 BC3 | 550-900 | >77 - 86 | >1,000:1 | 220±50 | 2.0±0.2 | ≤100 x 50 | unlaminated / laminated | |
VIS 700 BC3 CW03 (AR coated) | 550-900 | >84 - 93 | >1,000:1 | 220±50 | 2.0±0.2 | ≤100 x 50 | unlaminated / laminated | |
| VIS 700 BC4 | 600-850 | >78 - 87 | >10,000:1 | 220±50 | 2.0±0.2 | ≤100 x 50 | unlaminated / laminated | |
| VIS 700 BC4 CW02 (AR coated) | 600-850 | >84 - 93 | >10,000:1 | 220±50 | 2.0±0.2 | ≤100 x 50 | unlaminated / laminated | |
| VISIR | 600-1,200 | >67 - 84 | >100,000:1 | 260±50 | 2.0±0.2 | ≤100 x 60 | unlaminated / laminated | |
| VISIR CW02 (AR coated) | 600-1,200 | >71 - 88 | >100,000:1 | 260±50 | 2.0±0.2 | ≤100 x 60 | unlaminated / laminated |
The contrast ratio is defined to be k1:k2, where k1is the transmittance of a polarized beam passing the filter and k2 is the transmittance of a polarized beam blocked by the filter .
Contrast ratios ≥100,000:1, other thicknesses, shapes or dimensions on request. Reflection losses can be minimized by antireflection coating. AR-coatings are available for different wavelength ranges as V-coating or wide-band version.
