Goyalab Near infrared spectrometer - NIRS

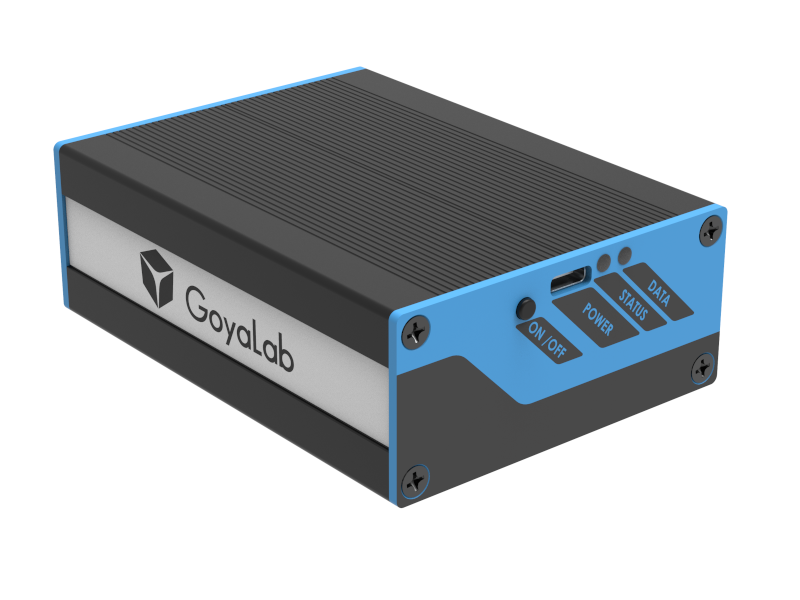

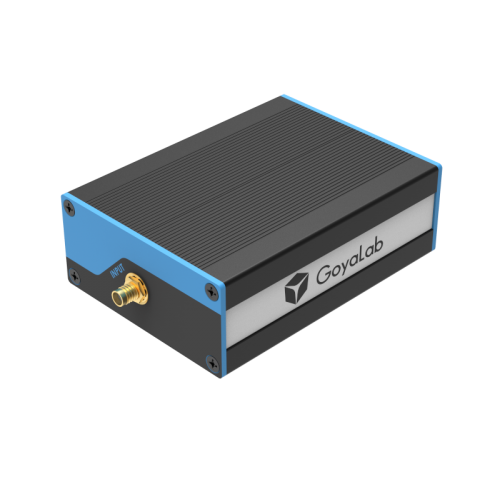

IndiGo OEM NIR: a compact near infrared spectrometer

IndiGo OEM is a transmission near infrared spectrometer. It can measure emission, absorption or transmission spectra from 720nm to 1040nm with an optical resolution of about 2nm (FWHM)

IndiGo OEM NIR is compatible with multiple spectral analysis applications. It can be used in the laboratory or as an on-board solution for industrial applications.

IndiGo OEM NIR is powered and connected via USB 3.0 (USB-type C). It comes with the SpectroLab PC application (Win10 64bits) to capture and analyse spectra.

IndiGo OEM UV / Vis comes pre-calibrated on the nanometric scale.

SpectroLab offers the possibility to recalibrate the IndiGo OEM UV / Vis on the nanometric axis (x) and on the intensity axis (y).

On the nanometric axis (x):

• Fast calibration with a fluocompact lamp
• Detailed calibration with a Mercury Argon lamp

On the intensity axis (y), a calibrated halogen lamps is required with SpectroLab.

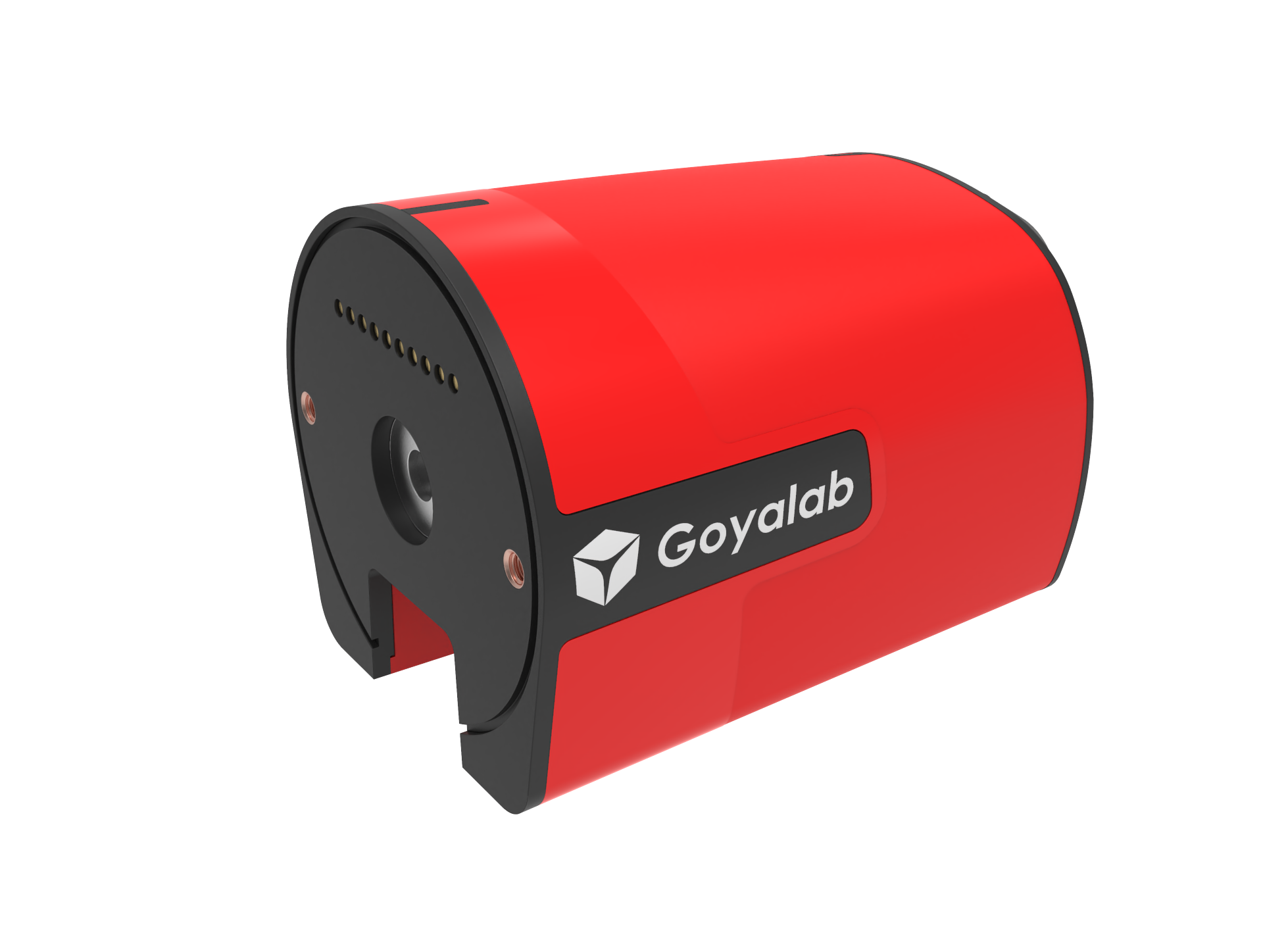

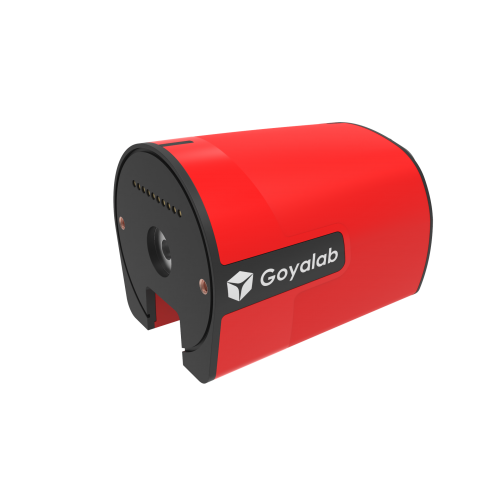

IndiGo NIR : A near infrared spectrometer

IndiGo NIR: a portable, connected and affordable near infrared spectrometer

IndiGo NIR is a near infrared spectrometer. It’s modular, fits in the palm of your hand. It is connected via Bluetooth to a smartphone, a tablet, or wired to a PC.

The IndiGo NIR connected in Bluetooth is autonomous on battery for a duration of 8 hours of measurements. Several days on standby. When connected to a PC, it uses the power of the USB-C port to recharge its battery and operate.

It can measure emission, absorption and transmission spectra from 720nm to 1040nm. It has a resolution of about 2nm (FWHM).

IndiGo NIR comes with two applications to capture and analyze spectra:

• a PC application for Win10 (USB-C connection)
• an Android application to analyze spectra (Bluetooth 5.0 connection)

IndiGo NIR allows you to take spectral measurements anywhere, anytime.

GoyaLab has developed several modules compatible with IndiGo NIR, which will offer you the possibility of adding additional functionalities to your spectrometer:

• NIR Reflection on solid
• NIR absorption / reflection on liquid contained in a cuvette

On request, these modules can be customised to your needs. (OEM).

IndiGo comes pre-calibrated on the nanoscale. Intensity calibration is an option.

If necessary, IndiGo NIR has a re-calibration device thanks to a USB connection on a PC and specific software provided by GoyaLab.

IndiGo NIR reflection: a near infrared reflection spectrometer

IndiGo NIR is composed of the IndiGo NIR core module and an additional NIR reflection module on its front containing 4 NIR LEDs broadband (700nm-1100nm).

A portable, affordable and customizable near infrared reflection NIR spectrometer.

IndiGo NIR reflection is particularly suitable for measuring humidity (moistures), carbohydrates, fats and proteins. There are many fields of application, ranging from milk, to cereals and to ripe fruits such as apples.

IndiGo NIR is compatible with most chemometrics software on the market.

The calibration model (PCA, PLS, etc.) can be integrated into the IndiGo to obtain a quantitative or qualitative measurement instead of a near infrared spectrum.

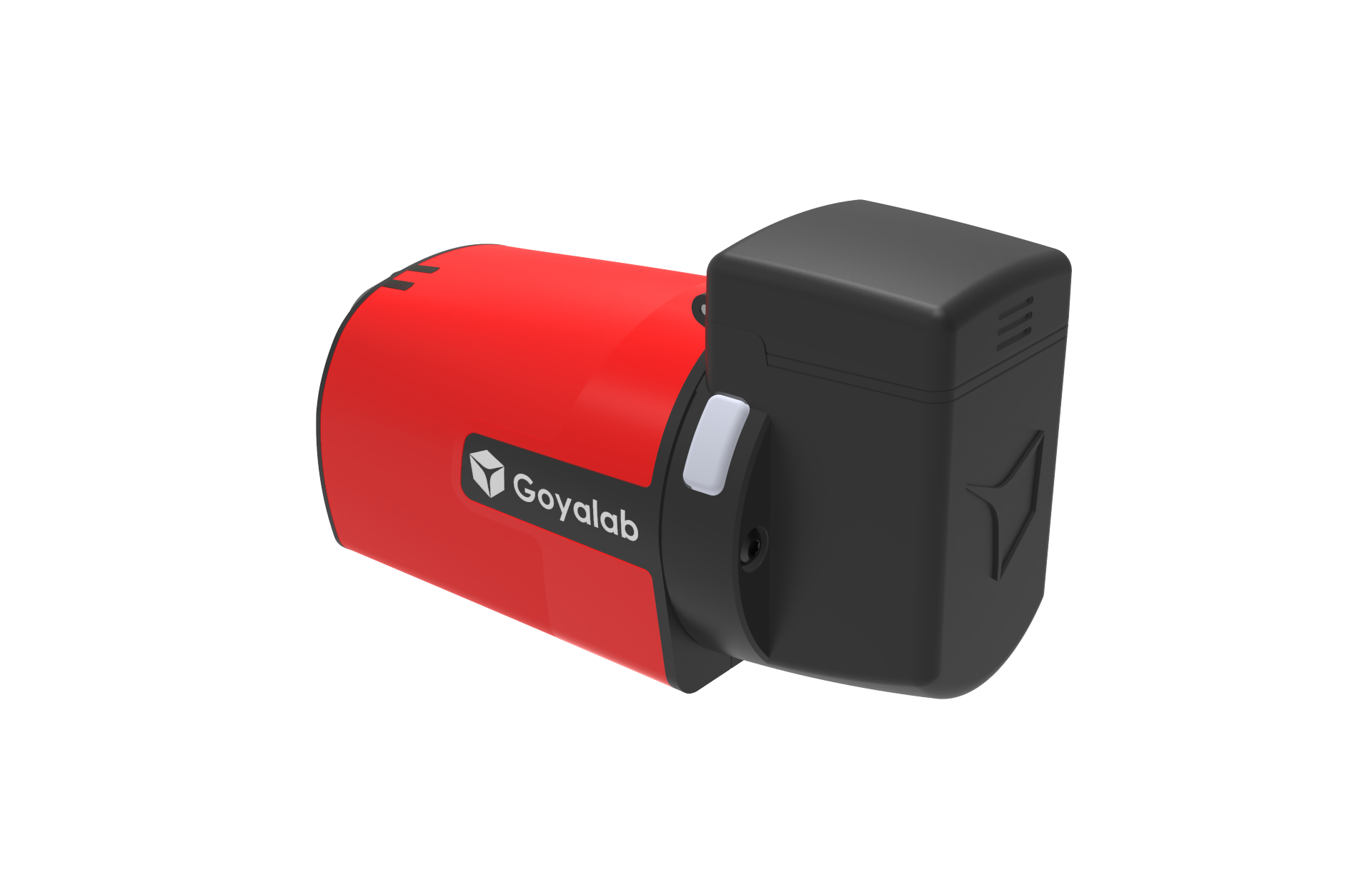

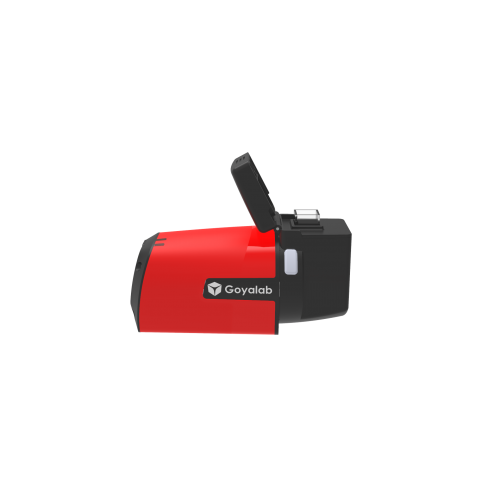

IndiGo NIR chemical analysis : A near infrared spectrometer for absorption and reflection measurements

The IndiGo NIR chemical analysis module is a pocket size spectrophotometer. It’s modular, fits in the palm of your hand, and is connected via Bluetooth to a smartphone or tablet or USB-C wired to your laptop.

It allows:

• to measure an absorption on a liquid contained in a cuvette from 720 nm to 1100 nm
• to measure a fluorescence or a reflection under IR excitation on a liquid contained in a cuvette

It is the most compact absorption and reflection NIR spectrometer / spectrophotometer on the market.

These devices can be used in multiple applications ranging from turbidity measures of wine and water, fluorescence analysis or measure of proteins, fats on a liquid such as milk.
