E2323 - DAli 3 Automatic Alignment System including MDE123 XYZ Positioner

E2323 - DAli 3 Automatic Alignment System including MDE123  XYZ Positioner

Device Automatic Alignment System with MDE123 XYZ flexure stage

E2323 - DAli 3 Automatic Alignment System
including MDE123 XYZ Positioner

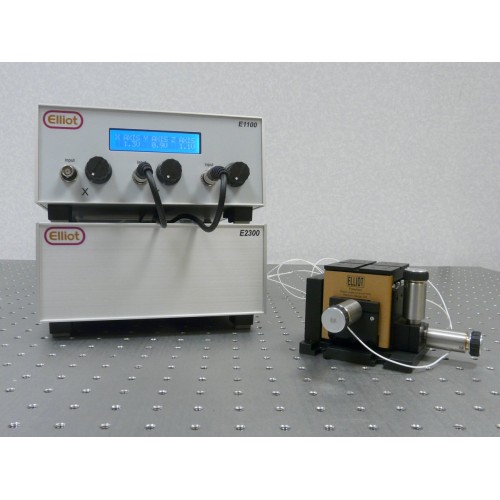

The E2323 system comprises a model E2300 2-axes automated feedback piezo controller plus MDE123 Elliot Gold™ Series XYZ flexure stage fitted with piezo actuators providing 25 µm of piezo and 2 mm of manual adjustment in each of the three axes.

DAli 3 Automatic Alignment System Features

  • 3-Axes piezo controller for 150 V actuators (E1100)
  • Operation via software or manual controls
  • Superior search and optimise routine
  • Store parameter sets for each alignment
  • Full control over scan parameters
  • USB interface
  • LabVIEW™ drivers included
  • Clear LCD display
  • Power meter display
  • Floating input stage


Elliot Gold™ Series XYZ flexure stage (MDE123) Features

  • Ultra-stable patented* design XYZ flexure stage
  • XYZ Piezo adjusters
  • Right Handed Configuration (Left Handed available to order)
  • 25 µm piezo adjustment travel
  • 10 nm resolution
  • 2 mm coarse manual travel
  • Orthogonal alignment grooves
  • 4.5 kg load capacity

A number of papers have been published by scientists around the globe who have used an Elliot Scientific DAli Automated Alignment System within their research. Here is an example:

SpecificationsDAli / MDE123 Axis Diagram

Please refer to the individual product sheets for a complete description of the performance specifications.

E2300 DAli 3 Automatic Alignment System with USB interface.

MDE123 Elliot Gold™ series XYZ flexure stage

* Patent Nos  GB 2129955B  USA 4635887

DAli is a trademark of Elliot Scientific

Product Code: Elliot Scientific E2323

Availability: Contact us for details
Price: £8,603.00
