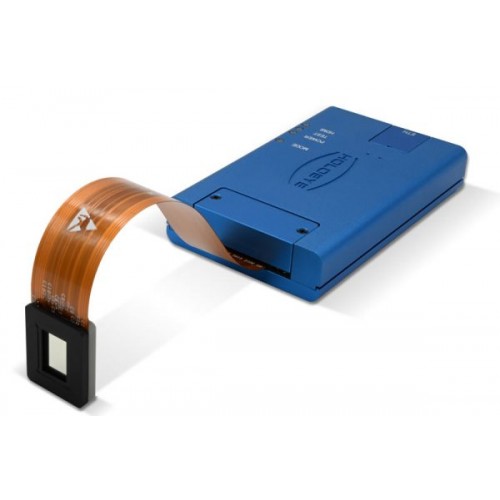

ERIS-1.1 Analog Phase Only LCOS SLM

The analog ERIS-1.1 Phase Only Spatial Light Modulator shows extreme phase stability, low latency and low crosstalk. The device features a 120 Hz mode and a 10 bit phase mode.

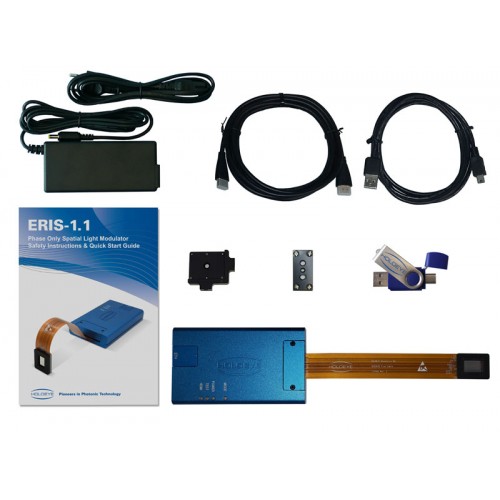

The ERIS SLM is a plug & play phase modulator device and can be addressed with phase functions via standard graphics cards as an extended monitor device. Addressing can be done using the supplied Pattern Generator software or the SLM Slideshow Player software or standard image viewer software. HOLOEYE also provides an SLM Display Software Development Kit (SDK) which provides APIs (Application Programming Interface) for different programming languages.

The ERIS-1.1 driver uses an HDMI interface for addressing phase functions and an USB connection to communicate with the driver (to changing the voltage vs. gray level distribution (gamma control) and dynamic range (voltage across the LC cell) in order to calibrate the SLM for different wavelengths). Besides this the driver features a trigger sync output to synchronize the device with external devices.

Versions

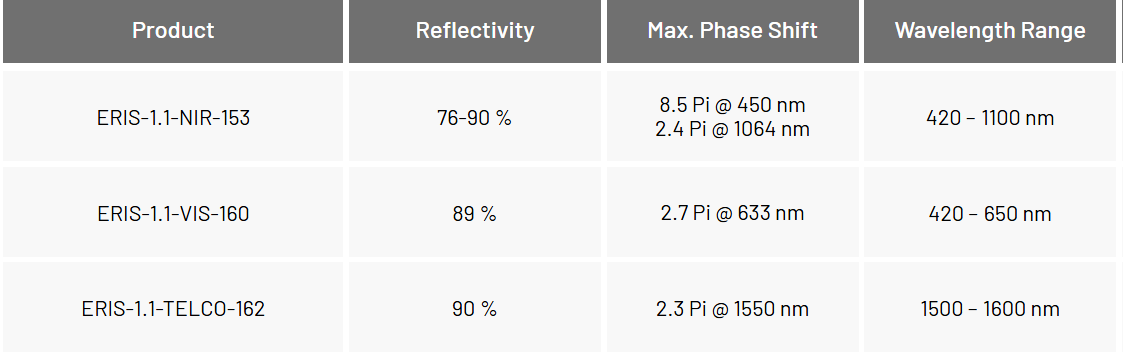

Currently we offer 3 versions of the ERIS-1.1 phase SLM. One version is optimized for the visible range, one flexible broadband version for the range of 420 – 1100 nm and one version is optimized for usage at 1550nm.
