LETO-3 phase only fast SLM with high bandwidth

LETO-3 phase only fast SLM with high bandwidth

Microdisplay Features

• Display Type: Reflective LCOS (Phase Only)
• Resolution: (1920 x 1080)
• Pixel pitch: 6.4 µm
• Fill factor: 93%
• Active Area: 12.29 x 6.91 mm (0.55″ Diagonal)
• Addressing: 8 Bit (256 Grey Levels)
• Signal Formats: HDMI – HDTV Resolution
• Input Frame Rate: 60/180 Hz

The LETO-3 Phase Only Spatial Light Modulator is our fast SLM platform with high band width. The SLM is capable of color sequential phase operation.

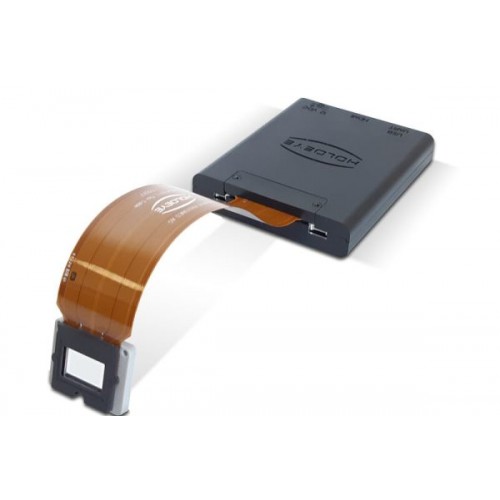

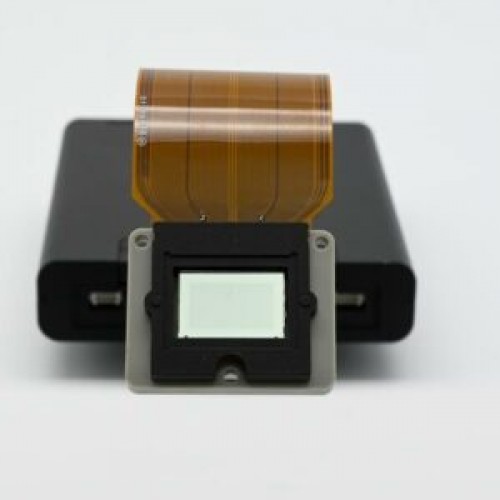

The LETO-3 phase only Spatial Light Modulator is based on a reflective LCOS microdisplay with full HD (1920 x 1080 pixel) resolution. With a pixel pitch of 6.4 µm and a small interpixel gap of 0.2 µm the LETO-3 SLM provides a high fill factor of 93%.

The LETO-3 Spatial Light Modulator offers a reflectivity between 62% up to 75% (dependent on wavelength and version). The device offers diffraction efficiencies of more than 80% (16 level blazed grating) which leads to a total light efficiency of ~ 60%.

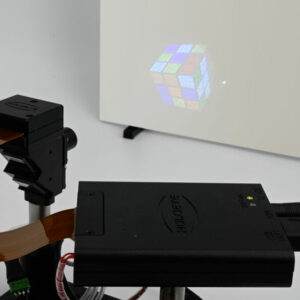

The LETO-3 SLM driver is prepared to work in color-field-sequential (CFS) mode e.g. with color-switchable LASER or LED lighting and the device features an LED-connector which can be used to synchronize the light source with the device. The driver features 4 slots with preconfigured CFS configurations for different environments which can be slected using the Configuration Manager Software.

Versions

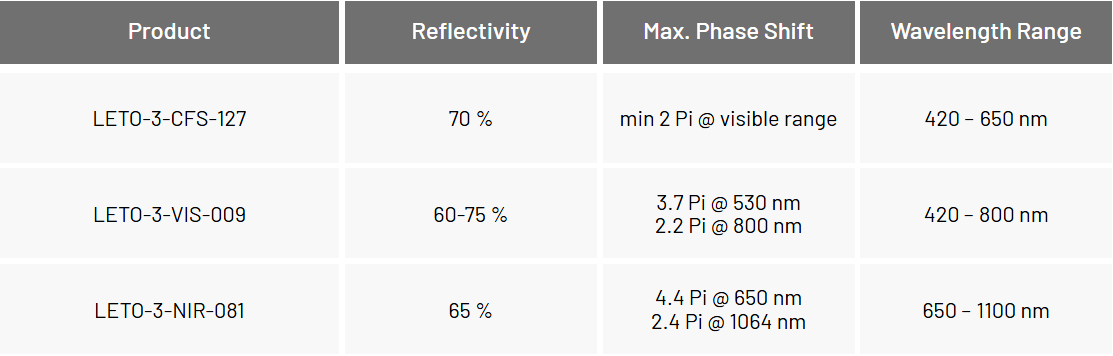

HOLOEYE offers three different LETO-3 Spatial Light Modulator versions which are optimized for the use at different wavelength ranges / for different applications. One SLM version is optimized for the visible range, one version for the near IR range up to 1100 nm and a third version is optimized for fast response (180 Hz) and use for color-field-sequential (CFS) operation in the visible range with color-switchable RGB Laser.

Please contact us for the latest price.
