CE-certified NoIR LaserShields® : Frames and Styles

NoIR LaserShields® : Frames and Styles

The human eye can be permanently injured from direct or reflected exposure to laser energy or other intense light sources such as high-power LEDs and plasmas. Retinal injury occurs from exposure to visible, such as the possible Blue Light Hazard effect, or near IR energy (400-1400 nm), while corneal or lens damage results from UV (190-400 nm) and IR (1400-11000 nm) exposure.

Safety eyewear, coupled with proper safety protocols and strong training, can prevent injury and should be worn in the presence of any intense light source.

NoIR safety eyewear is designed to absorb specific light energies, and eyewear must be selected by considering source wavelength(s) and peak irradiance, required optical density (OD), visual light transmittance, field of view, effects on natural colour rendition and frame comfort.

NoIR LaserShields® are manufactured using one of the three following technologies as determined by the performance required from the filter:

  • Narrow-band absorptive dyes permanently moulded into polymer lenses
  • Absorptive mineral glass
  • Hybrid polymer or glass filters combining absorption with reflective coatings

Since eye protection is only effective when it's worn, LaserShield® laser safety products come in lightweight and comfortable styles that are easy to wear.

To buy eyewear, please contact us for advice and prices.

 Extra-small (Paediatric)

Style KM

  • Wrap-around design
  • Close-to-the-face fit
  • For petite faces, adolescents and pre-teens

Style 41

  • Adjustable temples
  • Modern fit-over style
  • For petite faces, adolescents and pre-teens
 Small

Style 31

  • Modern fit-over style
  • Soft temples
  • Top and side-shield protection
 Medium

Style 33

  • Good temple and cheek coverage
  • Reinforced material for higher damage thresholds
  • Available in white
  • Universal fit-over style for those with and without Rx glasses

Style 34

  • Sleek stylish wrap-around fit
  • 8 base lens provides full wrap-around coverage
  • Soft temples
  • Removable Rx or magnification inserts up to 4x

Style 35

  • Modern wrap-around style
  • Adjustable temples
  • Comfort fit

Style 36

  • Modern fit-over universal style
  • Adjustable temples
  • Soft touch nylon frame
  • Full field of view
  • Available in white
  • Comfortable over Rx frames or alone

Style 40

  • Modern fit-over universal style
  • Flip-down secondary filter
  • Adjustable temples
  • Comfortable over Rx frames or alone


NoIR's Style 40 flip frame can be of benefit in situations where a user requires the modification of the passband of the fixed filter. In this example, the fixed filter is FG1 mineral glass for IR sources above 900 nm, and the secondary filter is the AXX which blocks UV and IR in between 700 and 900 nm.



Style 44

  • Modern wrap-around style
  • Comfort fit
  • Accepts Rx or secondary filter

Style 45

  • Modern wrap-around style
  • Comfort fit

Style 46

  • Modern wrap-around style
  • Comfort fit
  • Compatible with glass filters such as FG1

Style 51

  • Modern fit-over style
  • Soft temples
  • Top and side-shield protection

Style 52

  • Large wrap-around
  • Full orbital coverage
  • Comfort fit temple

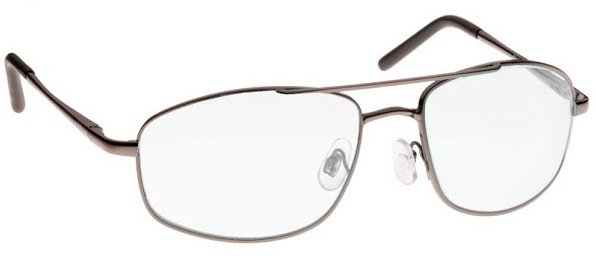

Style 54

  • Classic aviator style
  • Spring-fit temple hinges
  • Adjustable temples and bridge

Style 55

  • Fit-over with side-shield protection
  • 1950s retro-styling
  • Detachable Rx or magnification inserts

Style 56

  • Modern wrap-around
  • Reinforced material
  • Comfort-fit temples
 Large

Style 38

  • Modern fit-over style
  • Soft temples
  • Top and side-shield protection
  • Available in white

Style 42

  • Adjustable temples
  • Comfortable fit-over style
  • Wider nose bridge

Style 43

  • Full field of view
  • Universal fit-over style

Style 53

  • Large modern fit-over
  • Side and brow protection
  • Comfort-fit temples
 Extra-large

Style 39

  • Modern fit-over style
  • Soft temples
  • Top and side-shield protection
 Goggles

Style 50

  • Modern goggle
  • Vented to prevent fogging
  • Rx-inserts
 Safety Style

Style 700

  • Soft temples
  • Top and side-shield protection
  • Universal fit - Rx or not

Style 900

  • Top and side-shield protection
  • Universal fit - Rx or not




Product Code: NoIR LaserShields Frames and Styles

Availability: Contact us for details
