MDE255M - Single Axis Micropositioner Stage with Micrometer

MDE255M - Single Axis Micropositioner Stage with Micrometer
Built to order
MDE255M - Single Axis Micropositioner Stage with Micrometer
  • Stock: In Stock
  • Click here to: Contact us
  • Model: Martock MDE255M
£269.00

Single Axis Small Micropositioner Stage with Micrometer

MDE255M

  • Micrometer adjuster
  • Stainless steel body
  • Small dovetail slides
  • Wide range of configurations
  • Very smooth backlash-free motion
  • Slide surfaces precision lapped in matched pairs

The MDE255M is a small, single axis micropositioner with micrometer adjustment for precision linear translation stage applications in physics experiments or optical systems.

Specifications

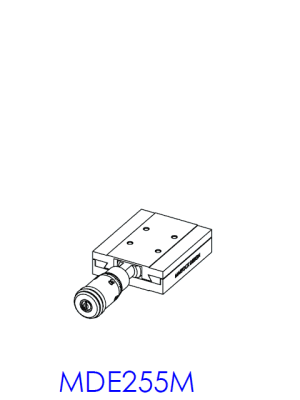

MDE255M Series Drawing
Click here to download
Travel10 mm
Micrometer scale   0.01 mm


Variants
Lockable travel

Vacuum version





Note: Surface mating with these micropositioners must be truly flat. Unflat surfaces or overtightened screws will cause the slide motion to be jerky and stiff due to distortion. Dovetail slides, unlike miniature ball slides, are unlikely to be permanently damaged by temporary distortion, as the load is supported on a comparatively large area.

File NameSizeLink
MDE255M SERIES_45.PDF246.72 kbDownload
MDE255MSeriesAnim66_45.gif939.47 kbDownload
MDE255M_3D_45.PDF382.47 kbDownload
MDE255M_45.PDF96.08 kbDownload
MDE255M_45.SLDPRT1.09 MbDownload
MDE255M_45.STEP3.58 MbDownload
Showing 1 to 6 of 6 (1 Pages)
