MDE330 - Elliot Gold™ Series XYZ Flexure Stage

MDE330 - Elliot Gold™ Series XYZ Flexure Stage
Trending Built to order
MDE330 - Elliot Gold™ Series XYZ Flexure Stage
  • Stock: In stock - Contact us for lead times.
  • Click here to: Contact us
  • Model: Martock MDE330
£490.00

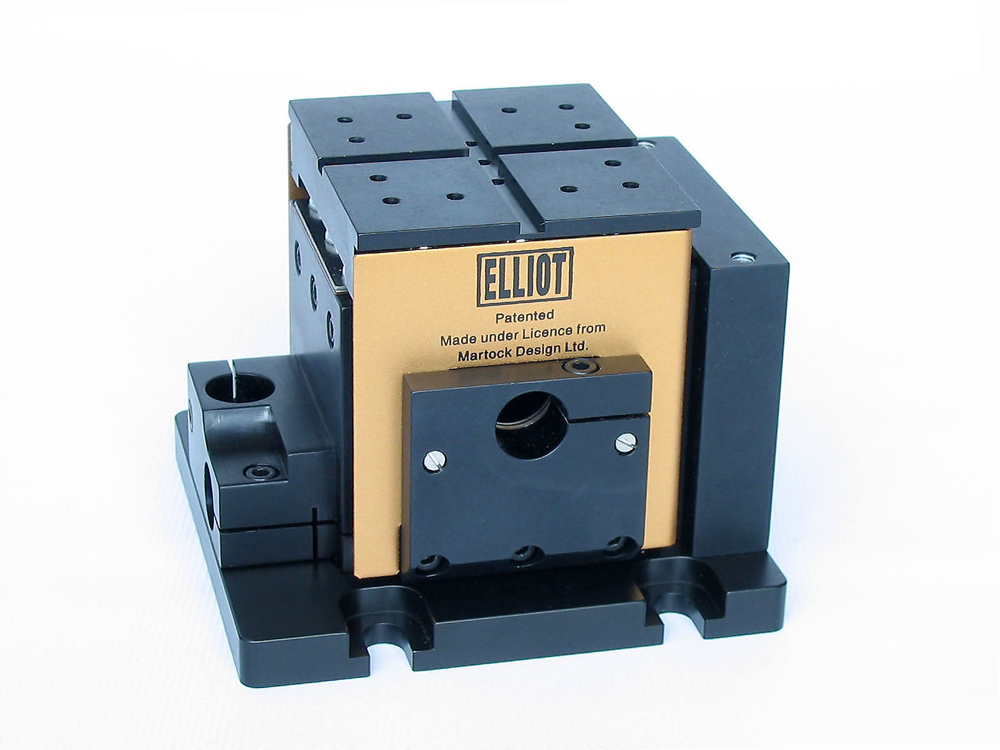

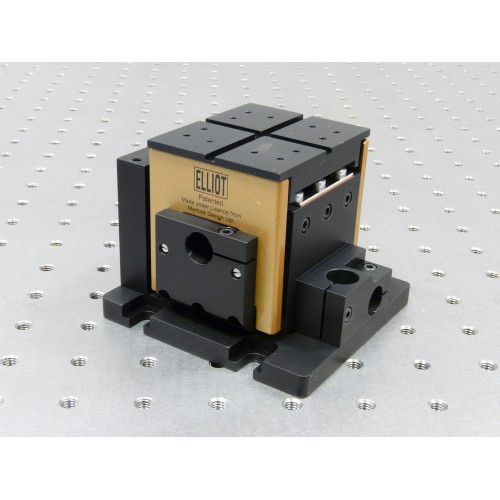

Elliot Gold™ Series XYZ Flexure Stage without Adjusters

MDE330

  • 2 mm coarse travel per axis
  • 4.5 kg load capacity
  • Minimal arcuate displacement
  • Orthogonal alignment grooves
  • Use any combination of Elliot Scientific adjuster types
  • Ultra-stable patented design XYZ flexure stage

The MDE330 flexure stage is supplied without adjusters, thereby permitting the user to choose and fit a different type of adjuster on each axis to match individual performance and cost requirements. For example, 1 manual and 2 piezo adjusters or 2 high-precision and 1 piezo. The MDE330 is compatible with all Elliot Scientific adjusters.

The Elliot Gold™ series XYZ flexure stage is a development of the immensely popular original stage invented and patented by Martock Design, now a subsidiary of Elliot Scientific. Flexure stages are ideal for high precision 3D device manipulation.

Applications range from fibre launch systems for single-mode, multimode and polarisation maintaining fibres as well as waveguide alignment, through to the manipulation of microstructures in bioscience. The arcuate displacement (vertical displacement due to longitudinal flexure motion) is up to 4 times better than competing products.

The optical axis height of all accessories is 18 mm above the top plate, placing the optical axis 94 mm above the bottom of the stage.

SpecificationsMDE330 XYZ Flexure Stage Axis Diagram
ConfigurationRight handed version
AdjustersNone fitted
Stage travel2 mm in X, Y and Z axes
ResolutionAdjuster dependent
Load capacity4.5 kg
Arcuate Displacement  X axis: 20 µm (at maximum range of travel)
Y & Z axes: 14 µm (at maximum range of travel)
Optical axisThe optical height of all Flexure Stage accessories is 18 mm above the top plate. Therefore, the optical axis height of a mounted accessory is 94 mm above the bottom of the stage.
IncludesModel MDE154 clamp set



Options and Accessories
Flexure stage accessories - objective mounts, plates, clamps
Alternative adjusters - simple, high precision, piezo or motorised
Left-handed version (To special order)
Pitch and yaw add-on modulesMDE330 can be specially ordered in a left-handed version
Fibre launch systems
Fixed brackets
Fibre holders
Fibre rotators



MDE330L: Left-handed version - special order only



† Patent Nos. GB 2129955B & USA 4635887

File NameSizeLink
MDE330_206.PDF98.56 kbDownload
MDE330_206.SLDPRT1.34 MbDownload
MDE330_206.STEP4.05 MbDownload
MDE330_3D_206.PDF611.81 kbDownload
Showing 1 to 4 of 4 (1 Pages)
