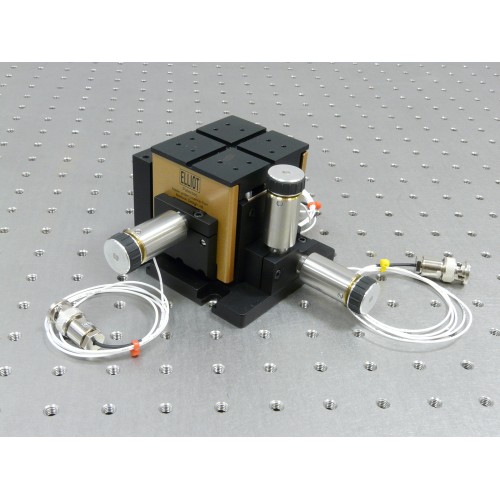

MDE123 - Elliot Gold™ Series XYZ Flexure Stage with Piezo Actuators: 25 µm Adjuster
Elliot Gold™ Series XYZ Flexure Stage with 25 µm Piezo Actuators
- 10 nm resolution
- 25 µm Piezo adjustment travel
- 2 mm coarse travel per axis
- 4.5 kg load capacity
- Minimal arcuate displacement
- Orthogonal alignment grooves
- Ultra-stable patented† design XYZ flexure stage
The MDE123 flexure stage is fitted with piezo actuators providing 25 µm of piezo and 2 mm of manual adjustment in each of the three axes. This system can be controlled either via a simple piezo controller or an Elliot Scientific Device Automated Alignment System (DAli 4).
The Elliot Gold™ series XYZ flexure stage is a development of the immensely popular original stage invented and patented† by Martock Design, now a subsidiary of Elliot Scientific. Flexure stages are ideal for high precision device manipulation.
Applications range from fibre launch systems for single-mode, multimode and polarisation maintaining fibres as well as waveguide alignment, through to the manipulation of microstructures in bioscience. The arcuate displacement (vertical displacement due to longitudinal flexure motion) is up to 4 times better than competing products.
The optical axis height of all accessories is 18 mm above the top plate, placing the optical axis 94 mm above the bottom of the stage.
|Configuration||Right handed version|
|Adjuster Type||Three 0 to 150 V piezo with manual control (model MDE218), piezo travel 25 µm|
|Stage travel||2 mm coarse manual travel (on 0.25 pitch thread) in X, Y and Z axes|
|Resolution||10 nm with piezo control (over 25 µm range)|
|Load capacity||4.5 kg|
|Arcuate Displacement||X axis: 20 µm (at maximum range of travel)
Y & Z axes: 14 µm (at maximum range of travel)
|Optical axis||The optical height of all Flexure Stage accessories is 18 mm above the top plate. Therefore, the optical axis height of a mounted accessory is 94 mm above the bottom of the stage.|
MDE 330 Flexure stage
MDE 218 Piezo adjusters (25um) XYZ
Left-handed version available
E1100 Piezo Controller
DAli 4 Auto-alignment controller
† Patent Nos. GB 2129955B & USA 4635887
