E22891 - Dual Fibre Rotation (MDE235 rotator)

E22891 - Dual Fibre Rotation (MDE235 rotator)
E22891 - Dual Fibre Rotation (MDE235 rotator)
E22891 - Dual Fibre Rotation (MDE235 rotator)
Contact Us
E22891 - Dual Fibre Rotation (MDE235 rotator)
E22891 - Dual Fibre Rotation (MDE235 rotator)
E22891 - Dual Fibre Rotation (MDE235 rotator)
E22891 - Dual Fibre Rotation (MDE235 rotator)
  • Stock: Contact us for details
  • Click here to: Contact us
  • Model: Elliot Scientific E22891
£8,526.00

Photosensitive Fibre Rotator

E22891  -   Revised configuration no longer includes Goniometer

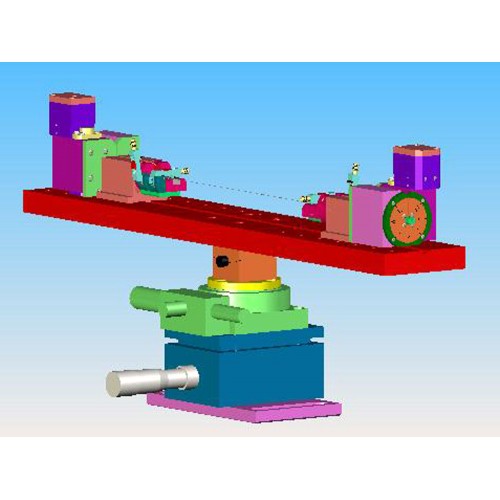

The E22891 comprises two MDE235 motorised fibre (US: fiber) rotators mounted on a customised breadboard, allowing variable spacing of the fibre clamps. Designed for the rotation of photosensitive or PM fibres during or between exposures, the two fibre rotators are synchronised to prevent any torsional stress on the fibre.



Features

  • Slotted design for easy insertion and removal of fibre
  • Full 360° rotation
  • Integral stepper motor drive
  • Resolution < 0.01° single step
  • Maximum speed 18°/s (20 s for 360°)
  • Fibre held in variable-force V-groove clamps
  • Standard V-groove for 125/250 µm fitted. (Custom sizes available.)
  • V-block preset on axis with less than 1 µm concentricity error
  • Stepper drive controllers available with LabVIEW™ drivers for auto rotation alignment
File Name Size Link
application_note ES 9901_2.PDF 243.33KiB Download
Terms and Conditions V6 206.45KiB Download
Showing 1 to 2 of 2 (1 Pages)
