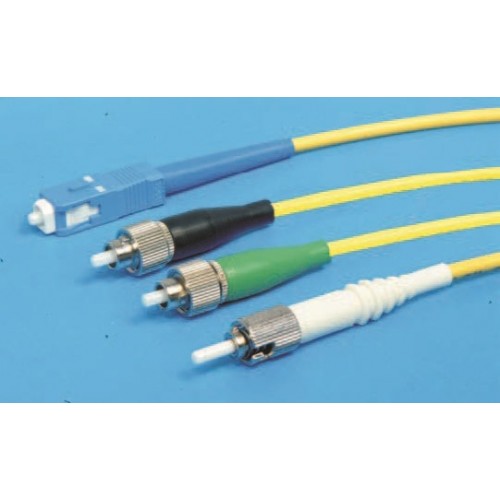

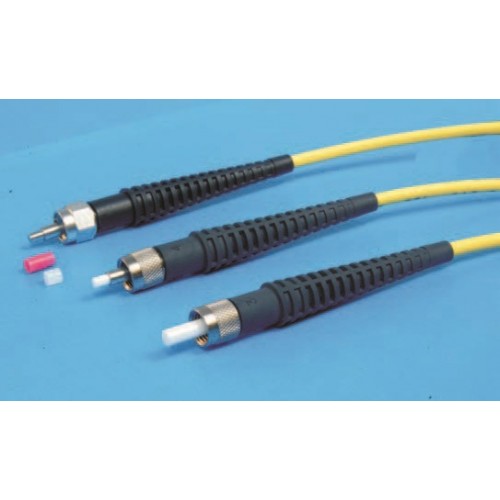

SMJ-3U3U-633-4/125-3-1, QSMJ-3S3S-320-2/125-3-1, MMJ-3A3A-IRVIS-62.5/125-3-1, QMMJ-3A3A-IRVIS-50/125-3-1
These patchcords offer low insertion losses, and excellent repeatability. Patchcords can be manufactured to any specified length. An array of cable materials are available, including unjacketed fiber, 0.9 mm outside diameter (O.D) loose tube buffer, 3 mm O.D kevlar reinforced PVC jacketing, 3 mm armored cabling, and 5 mm heavy duty armored cabling as well as 3 mm or 5 mm Stainless Steel armored cablings. Variety of multimode (MM) fiber types are available, including telecommunication standard Graded Index (GI) fibers (50/125, 62.5/125 and 100/140 fiber sizes), and step index (SI) fused silica core fibers for high power applications (10 to 1500 micron core sizes). Singlemode (SM) fibers are available for a variety of wavelengths, ranging from 320 nm to 1550 nm as well 2000 nm fibers. They typically have a 99% numerical aperture (NA) of about 0.13. Higher NA singlemode fibers are available for certain special applications.
Features
- Low insertion loss < 0.2 dB
- Excellent repeatability
- FC/PC, SC, ST, LC, MU, E2000 termination available
- Custom ferrule termination available
- Designed to meet Telcordia specification
- Large selection of cabling
- Operating wavelengths from 200 nm to 2000 nm
- Two micron to 1500 micron diameter core sizes available
- Low and high numerical aperture fibers
- Dielectric anti-reflection coatings available
Applications
- High speed (10 Gbs/40 Gbs) Telecommunications
- Interfermetric Sensors
- Integrated Optics
- Fiber Amplifiers
- Laser detection and display
- Materials processing
