OZ-1000-635-4/125-S-40-3S-3A-1-1, OZ-2000-375-2/125-S-40-3S-3A-1-3,

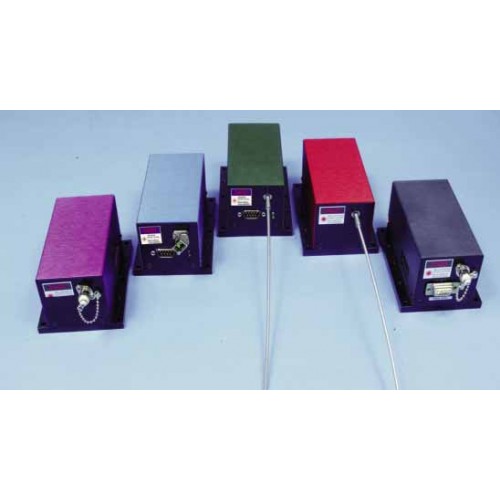

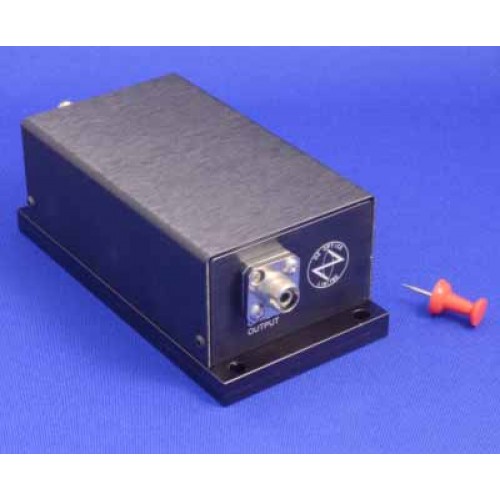

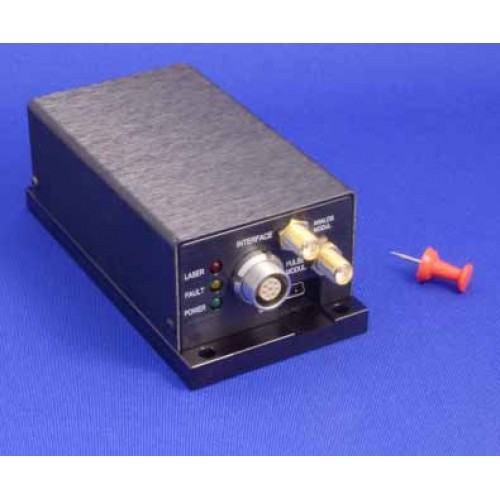

The OZ-1000, OZ-2000 and OZ-3000 laser modules are temperature stabilized, fiber coupled, laser delivery systems. The standard OZ-1000, OZ-2000 and OZ-3000 units operate the laser at a fixed temperature. The compact housing contains both the laser and the temperature control, and are powered by a single 5 V DC supply. The low noise laser diode and TEC drivers maintain the wavelength variation to better than 0.2 nm, and also reduces the tendency of the laser diode to mode hop, assuming there is no feedback into the laser cavity. The electrical interface on the OZ-1000 is located on the front face of the unit alongside the optical interface, while on the OZ-2000 and OZ-3000 it is on the rear of the unit. The three configurations have as default analog CW output power control, with analog modulation capability. A TTL input interface is optional. Our low profile OZ-3000 comes with a USB interface and an 8 pin circular connector. The units are equipped with an adjustable output power feature. The output power can be adjusted by simply changing the DC voltage on the Power Control Input. The voltage range is 0–5 V, with 0 V corresponding to maximum power, and 5 V minimum power.
Both the pigtail and receptacle style sources offer the choice of polarization maintaining, singlemode, or multimode fiber outputs and a wide range of connector or receptacle types. An output fiber collimator or focuser can be added to the output fiber as an option.
Features
- Output power up to 300 mW
- Wavelengths from 375 nm to 2050 nm available
- Guaranteed lifetime: 18 months or 5000 hours. Extended warranty is also available
- Excellent power & wavelength stability
- Low RMS noise
- Electrically or optically variable output power
- Easily configured analog interface
- USB interface optional; other interfaces are also available
- Level 4 ESD protection
- Single mode, multimode, or polarization maintaining fiber version
- Available with fiber pigtail or connector receptacle
- Optional collimator or focuser on the pigtail output
- Compact size and low cost
Applications
- Confocal microscopy
- Flow cytometry
- DNA sequencing
- Medical imaging, including OCT
- Insertion loss measurement and attenuation measurement
- High power or remote fiber delivery systems
- Accurate fiber optic testing
- Optical component manufacturing and testing
- Materials evaluation and testing
- RGB illumination systems
