OZ Optics - 2D FIBER MATRIX ARRAY (2D FMA) ASSEMBLIES, FMA

FMA

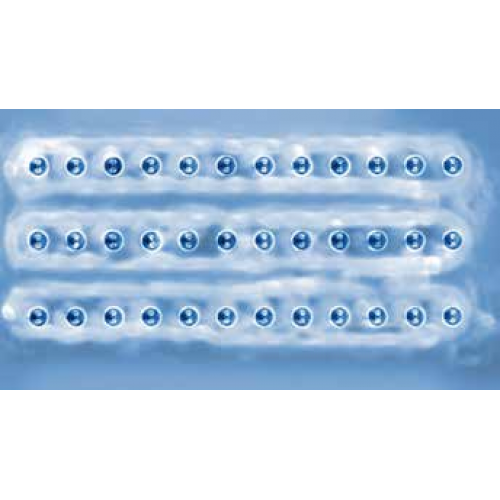

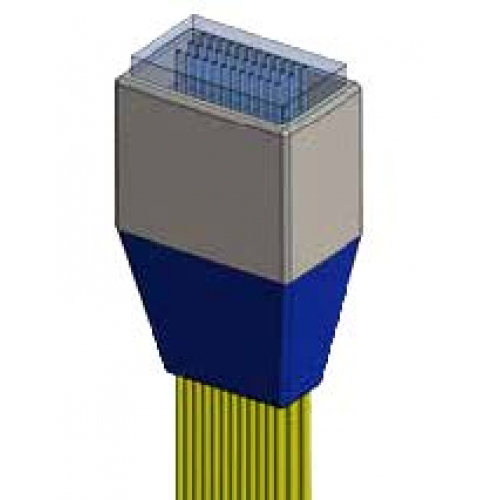

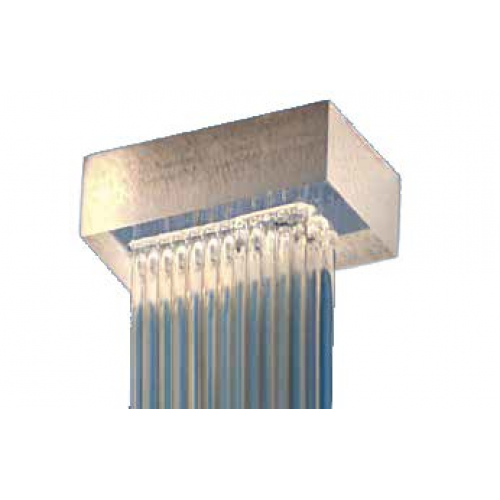

We provides a wide range of 2D Fiber Matrix Arrays by OZ Optics, made from different types of fibers (single-mode, multi-mode, polarization maintaining, other) at any customer specified lengths. 2D fiber optic assemblies allow hundreds of channels to be positioned precisely in both X and Y directions simultaneously without crosstalk. Building on our expertise in 1D V-Groove fiber positioning, we align and polish the fibers to a very high end-face quality and required length tolerances. We guarantee precise output pigtail lengths suitable for interferometry applications.

Features

• Up to 12x12 Fiber Matrix arrays or other combinations based on the availability of substrate
• Singlemode, multimode or polarization maintaining fibers
• High polarization extinction ratios up to 30 dB available
• Individual fibers
• Assemblies with bare fiber or 900 µm jacketing, and with or without connectors
• 900 µm jacketed breakouts available, up to 2 meters in length
• Custom configurations possible for OEM applications
• Designed to meet Telcordia specifications (GR 1221-core, GR 326-core)

Applications

• Optical Switching and Cross-Connection
• Biomedical Imaging
• Optical Sensors
• Switches
• Interferometry
• Integrated Components
• Connection to waveguide devices
• Spectroscopy and Astronomy
