OZ Optics - AUTOMATIC POLARIZATION EXTINCTION RATIO MEASUREMENT TEST SET FOR MPO/MTP® PM FIBER PATCHCORDS AND V-GROOVE ASSEMBLIES

ER-2000-MC-MPO-1290/1650-1-ER=35, MCPFOS-01-MPO-16-1550-1-ER=33

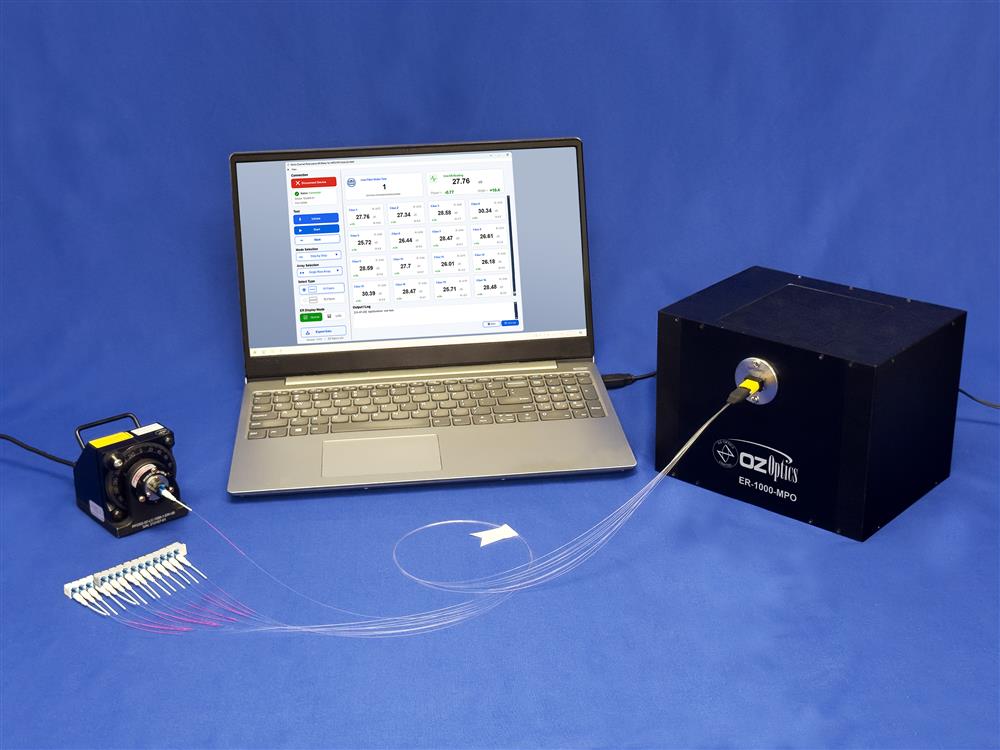

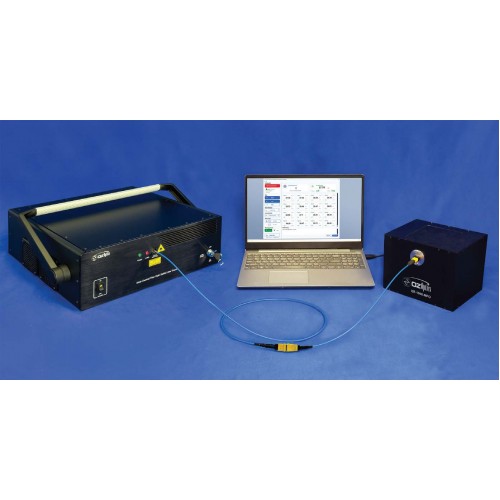

OZ Optics offers a turnkey semi-automated test measurement setup for testing the polarization properties of MPO/MTP® patchcords, V-Groove arrays and custom fiber arrays. The system is designed to allow quick ER characterization for multi-channel PM fiber with different fiber pitch separation. The system consists of a polarization extinction ratio meter with built-in motorized stages for automated fiber alignment during testing and a multichannel polarized light source (12, 16 or 24 channels) with individual channel control. The system comes with a Windows based application that allows quick and accurate polarization extinction ratio measurement of PM devices using a user’s computer. Both the meter and source can be configured with customer specified fiber port adaptors.

For our legacy manual polarization extinction ratio measurement test set for V-grooves assemblies and MPO/MTP® patchcords please refer to the following link: ALLNEW_PDF/DTS0068.pdf

Features

• Turnkey Automatic ER measurement for MPO/MTP® patchcords and V-groove assemblies
• Measures up to 35 dB extinction ratio
• Multi-channel PER measurement
• Selectable pitch steps: 125 um, 250 um etc.
• Intuitive Graphical User interface

Applications

• Fiber optic component manufacturing
• Optical Communication and data centers
• High Speed and Coherent Communications
• Photonic Integrated Circuits (PIC)
• Fiber Sensing and photonic system
• Component or system troubleshooting
• Research and development
