ER-2000-MC-MPO-1290/1650-1-ER=35

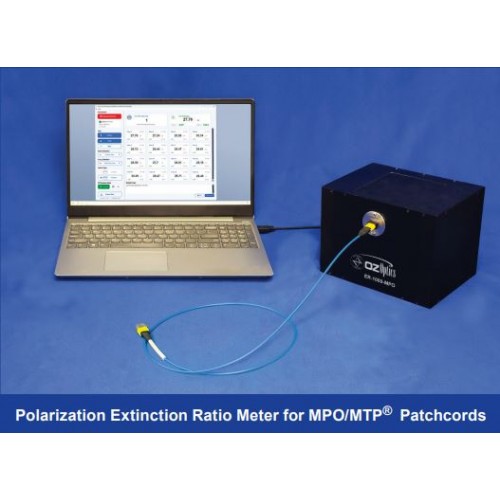

OZ Optics offers a turnkey semi-automated polarization extinction ratio meter for testing the polarization properties of polarization maintaining MPO/MTP® patchcords, V-Groove arrays and custom fiber arrays. The system is designed to allow quick ER characterization for multi-channel PM fiber assemblies with different fiber pitch separations. Polarization extinction ratio meter utilizes built-in motorized stages along with an optical power detection algorithm for automated fiber alignment during testing. The system comes with a Windows based application that allows quick and accurate Polarization Extinction Ratio measurement of PM devices using a user’s computer. The meter can be configured with customer specified fiber port adaptors. For our automated polarization extinction ratio measurement test sets for V-grooves assemblies and MPO/MTP® patchcords please refer to the following link: https://www.elliotscientific.com/Optics-and-Fibre-Optics/OZ-Optics-Components?product_id=1803
Features
- Turnkey Automatic ER measurement for MPO/MTP® patchcords and V-groove assemblies
- Measures up to 35 dB extinction ratio
- Multi-channel PER measurement
- Selectable pitch steps: 125 μm, 250 μm etc.
- Intuitive Graphical User interface
Applications
- Fiber optic component manufacturing
- Optical Communication and data centers
- High Speed and Coherent Communications
- Photonic Integrated Circuits (PIC)
- Fiber Sensing and photonic system
- Component or system troubleshooting
- Research and developmen
