OZ Optics - WAVELENGTH DIVISION MULTIPLEXERS, WDM

WDM-12P-111-1300/1550-7/125-PPP-60-3U3U3U-3-1

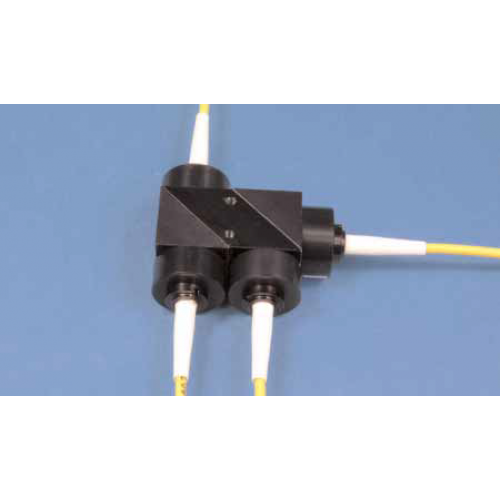

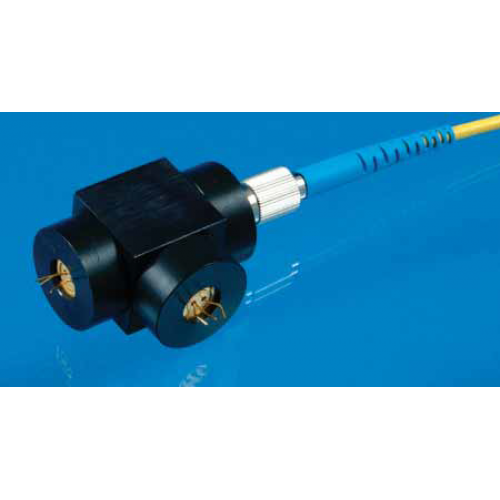

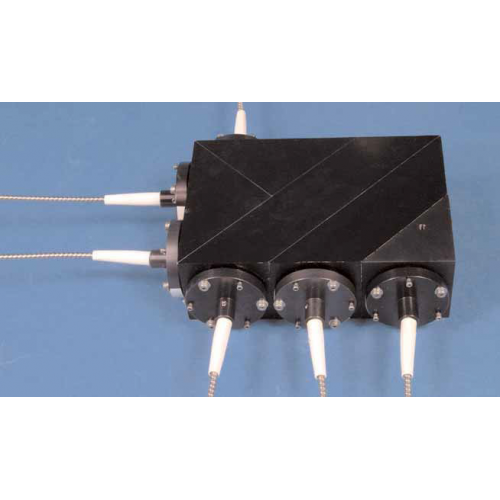

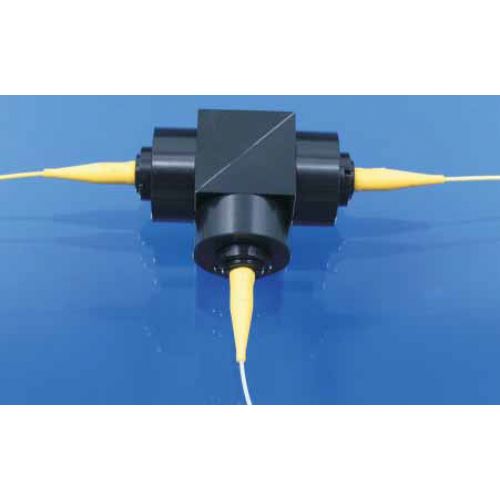

Wavelength division multiplexers (WDMs) are used to combine light of different wavelengths into a single fiber. The light from each fiber is first collimated. The collimated beams are then combined using a dichroic filter, with typically the longer wavelength transmitted from port T, the shorter wavelength reflected from port R. The combined beams are then focused into the output fiber at Port 1. OZ Optics manufacturers wave division multiplexors for both telecom and non-telecom applications. Of special interest are our WDMs for combining visible wavelengths. Our RGB multiplexors combine light at red, green and blue wavelengths into singlemode or polarization maintaining fiber. Systems combining as many as six different visible wavelengths have been produced. This makes them ideal for applications such as confocal microscopy, white light imaging, full colour holograpy and others.

Features

• PM fiber versions
• Visible wavelength (Red/Green/Blue) versions
• High power handling
• Low Insertion Losses
• Low return loss
• Wide wavelength range: 375–2000nm
• High power handling
• Coarse and dense WDM versions

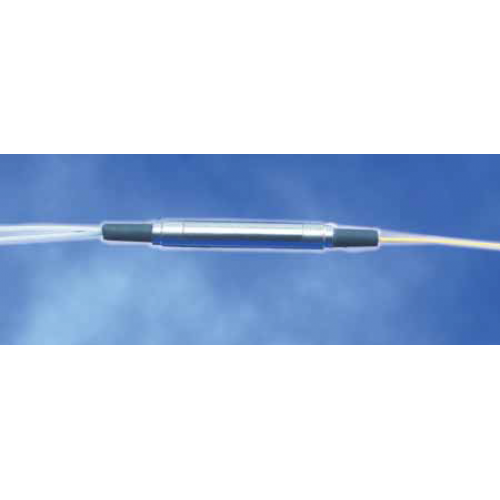

• Miniature inline Versions
• LOW COST!

Applications:

• Fluorescence Microscopy
• Confocal Microscopy
• Laser Spectroscopy
• Fiber Lasers
• Erbium Doped Fiber Amplifiers
• Imaging systems
• Drop/Add Filters for Telecommunications
• 980nm Pumping
• OCT systems
