OZ Optics - POLARIZERS – FIBER OPTIC, FOP

FOP-11-11-633-4/125-P-P-40-XX-3-1

Fiber Optic Polarizers are designed to polarize the output from a light source or fiber and launch it into an output fiber. These polarizers typically consist of input and output collimators with a plate polarizer in between. Broadband polarizers are used, so the
power extinction ratio is maintained for up to several hundreds of nanometers. The same polarizer, for example, may be used for 1300nm to 1600nm. The power extinction ratio is the ratio between maximum and minimum output power as the input  polarization state is changed. This is different from the output polarization extinction ratio, which is a measure of the ratio between the power in the two axes of polarization maintaining fiber. This value is dependent upon the extinction ratio of the
polarizer, the alignment of the output fiber axes to the polarizer and the extinction ratio of the output fiber. When an output extinction ratio is specified, it is the polarization extinction ratio. This value is only applicable when the output fiber is polarization
maintaining fiber. The power extinction ratio will always equal exceed the polarization extinction ratio.

OZ Optics offers fiber optic polarizers in four sizes. our original 12.5mm diameter size is best suited for non-telecom wavelengths and for custom designs. The larger size is also well suited for high power applications. Polarizers capable of transmitting several

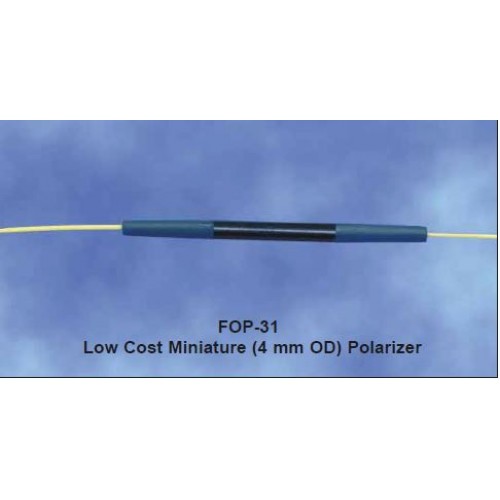

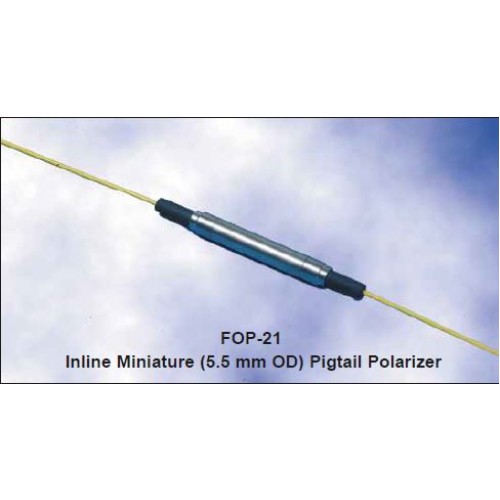

Watts of power have been made with this technique. The 5.5mm diameter size is well suited for telecom wavelengths, such as 1310nm and/or 1550nm, while the 4mm diameter option is best suited for low-cost systems where lower output extinction ratios

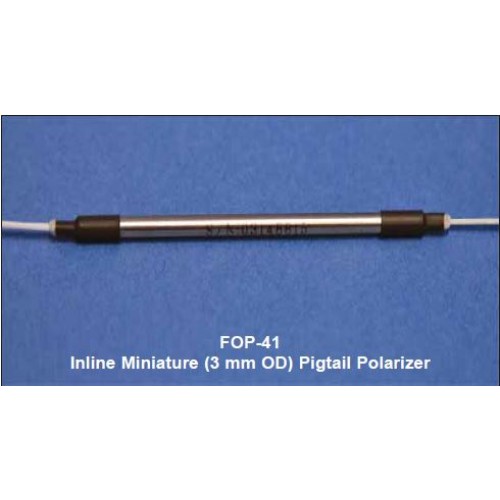

are acceptable. Finally, we now offer a new version, only 3mm in diameter, featuring exceptionally low return losses and superior performance over a very broad temperature range.

Features

• Rugged and compact housing
• SM, MM, PM and fiber combinations available
• Miniature sizes available
• Wide range of available wavelengths: 400–2050 nm
• High extinction ratio up to 40 dB
• Low loss
• Low back reflection
• Low cost

Applications

• Fiber amplifiers
• System polarization extinction ratio conditioning
• Measuring polarization extinction ratio\
• Sensors
• Integrated optics
• Interferometric sensors
• OCT systems
