VGA-4-250-8-A-10.3-3.8-2.03-P-1550-8/125-3A-1-1-0.5

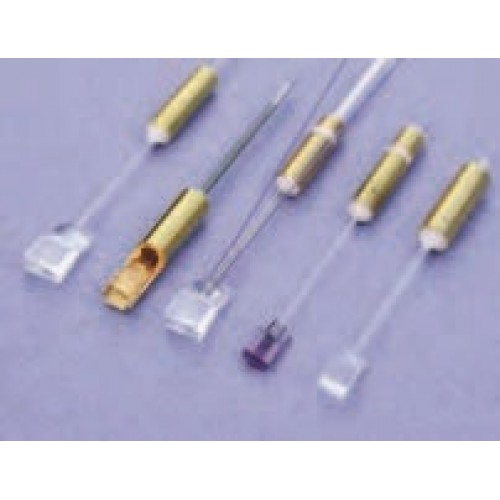

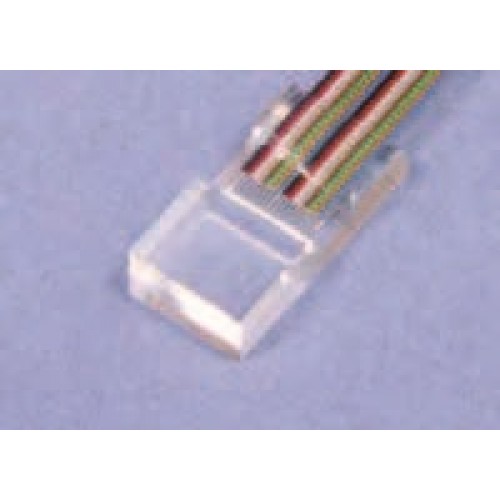

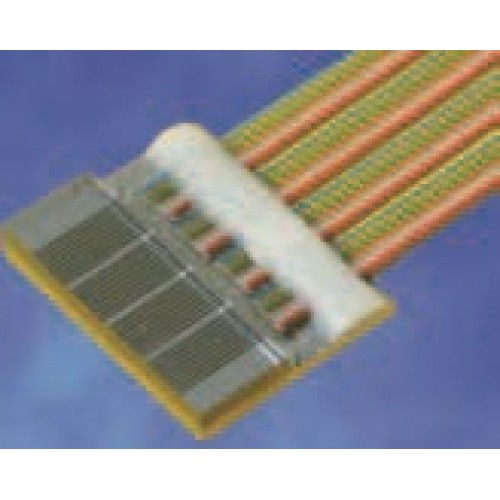

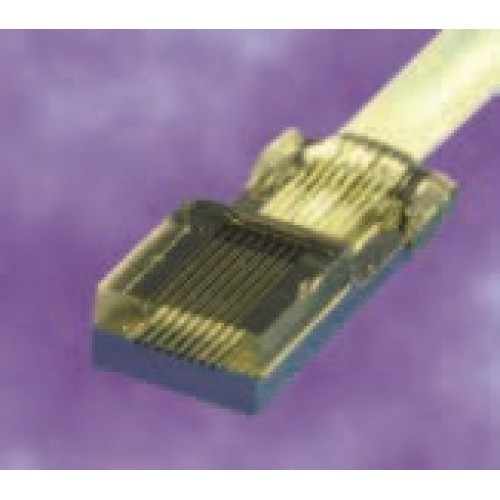

V-Groove array assemblies assist in developing next generation photonic devices. The arrays are manufactured using precision silicon wafer V-Groove technology or Pyrex V-Groove in conjunction with a Pyrex lid, enabling sub-micron alignment accuracy with UV cure attachment capabilities. V-Groove array assemblies are available with singlemode, multimode or PANDA type Polarization Maintaining (PM) fibers. Customization can even include different types of fibers assembled into a single array. In general, OZ Optics uses polarization maintaining fibers based on the PANDA fiber structure when building polarization maintaining components and patchcords. However, OZ Optics can construct devices using other PM fiber structures. V-Groove array assemblies can be manufactured with a hermetic feedthrough attached. This enables the development of multichannel photonic devices capable of meeting Telcordia requirements. Fiber breakouts can also be added, to convert ribbonized fibers into separated fibers, capable of being connectorized.
Features
- Up to 96 fiber V-Groove arrays
- Hermetic feedthru versions with glass or metal solder are available
- Singlemode, multimode or polarization maintaining fibers
- High polarization extinction ratios up to 30 dB available
- Ribbon or individual fibers, lensed/tapered fibers, mechanically cleaved, laser cleaved or polished endcapped fibers
- Assemblies with bare fiber or 900 µm jacketing, and with or without connectors
- Standard 900 µm jacketed breakouts available, up to 2 meters in length
- Custom configurations possible for OEM applications
- Designed to meet Telcordia specifications (GR 1221-core, GR 326-core)
Applications
- Arrayed Waveguide (AWG) devices
- Planar Lightwave Chips (PLC)
- Dense Wavelength Division Multiplexers (DWDM)
- MEMS devices
- Miniaturized or integrated fiber optic components
